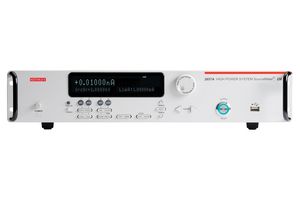

KEITHLEY 2657A

Source Measure Unit SMU, SourceMeter, 1-Channel, 4-Quadrant, 3000V, 120mA, 180W, High Power

KEITHLEY 2657A
Video
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KEITHLEY KEITHLEY
Manufacturer Part No:
2657A
Newark Part No.:
89T4206
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Product Range
2600A Series SourceMeter
ECAD / MCAD
Supply Frame Models Link

Product Range Selector (2600A Series SourceMeter)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
2600A Series SourceMeter

:
1Channels

:
Current/Voltage Source

:
180W

:
± 200V to ± 3kV

:
± 1nA to ± 120mA

:
-

:
1 Year

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (5)

Product Overview

The 2657A is a high voltage, high power, low current source measure unit (SMU) instrument that delivers unprecedented power, precision, speed, flexibility, and ease of use to improve productivity in R&D, production test, and reliability environments. The Model 2657A is designed specifically for characterizing and testing high voltage electronics and power semiconductors, such as diodes, FETs, and IGBTs, as well as other components and materials in which high voltage, fast response, and precise measurements of voltage and current are required.
  • Source or sink up to 180W of DC or pulsed power (±3000V@20mA, ±1500V@120mA)
  • 1fA low current resolution
  • Dual 22-bit precision ADCs and dual 18-bit 1«s per point digitizers
  • Fully TSP compliant for easy system integration with other Series 2600B System SourceMeter models

Applications

Sensing & Instrumentation, Signal Processing, Test & Measurement

Contents

Model 7709-308A DB25 Male Connector Kit (Solder Cup) with Shell & Model CA-180-3A TSP-Link Cable.

Footnotes

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

7 In stock Need more?

Order before 5.45pm EST standard shipping

Same day shipping

More stock available week commencing 24/06/24

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

$45,870.00
