DSOX1102G/DSOX1B7T102 -

Digital Oscilloscope, InfiniiVision 1000 X-Series, 2+1 Channel, 100 MHz, 2 GSPS, 1 Mpts, 3.5 ns

DSOX1102G/DSOX1B7T102 - Digital Oscilloscope, InfiniiVision 1000 X-Series, 2+1 Channel, 100 MHz, 2 GSPS, 1 Mpts, 3.5 ns
DSOX1102G/DSOX1B7T102 - Digital Oscilloscope, InfiniiVision 1000 X-Series, 2+1 Channel, 100 MHz, 2 GSPS, 1 Mpts, 3.5 ns
DSOX1102G/DSOX1B7T102 - Digital Oscilloscope, InfiniiVision 1000 X-Series, 2+1 Channel, 100 MHz, 2 GSPS, 1 Mpts, 3.5 ns
DSOX1102G/DSOX1B7T102 - Digital Oscilloscope, InfiniiVision 1000 X-Series, 2+1 Channel, 100 MHz, 2 GSPS, 1 Mpts, 3.5 ns
DSOX1102G/DSOX1B7T102 - Digital Oscilloscope, InfiniiVision 1000 X-Series, 2+1 Channel, 100 MHz, 2 GSPS, 1 Mpts, 3.5 ns

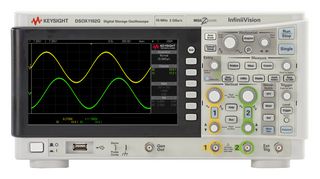

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
DSOX1102G/DSOX1B7T102
Newark Part No.:
06AC0356
Product Range
InfiniiVision 1000 X-Series
See all Technical Docs

Product Information

:
InfiniiVision 1000 X-Series
:
2+1 Channel
:
100MHz
:
2GSPS
:
1 Mpts
:
3.5ns
:
WVGA LCD Color
:
Digital Storage Oscilloscope, DSOX1B7T102 BW Upgrade, 2 Probes, Power Cord, Warranty, Secure Erase
:
3 Years
:
-
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The DSOX1102G+DSOX1B7T102 from Keysight Technologies is an InfiniiVision 1000 X-series 70MHz/100MHz, 2 channel oscilloscope with function generator. Keysight’s InfiniiVision 1000 X-series oscilloscope is engineered to give quality, industry-proven technology. With the unique, Keysight-designed MegaZoom IV custom ASIC technology, the InfiniiVision 1000 X-series delivers up to 50,000wfms/sec. Waveform tools include quick access to waveform math like FFT, add, subtract, multiply and divide. Reference waveforms allow quick comparison of stored waveforms. External trigger can be used as a 3rd channel and displayed on-screen to create a bus-type display. Built-in WaveGen supports sine, square, ramp, pulse, DC and noise with amplitude and frequency modulation. The built-in function generator enables to generate signals user needs to quickly stimulate design. Signals are easily synchronized for measuring stimulus/response testing including frequency response analysis (Bode gain and phase).
  • 2 analogue channels and 1 digital channel
  • Maximum sample rate is 2GSa/s
  • Maximum memory depth is 1Mpts
  • 7inch TFT LCD WVGA display
  • Calculated rise time (10 to 90%) is ≤ 3.5ns
  • Built-in USB host and USB device ports make PC connectivity easy
  • Access 24 built-in automatic measurements
  • Segmented memory and mask/limit testing
  • Dimension is 314mm (12.4 in) x 165mm (6.5 in) x 130mm (5.1 in)
  • UL61010-1 3rd edition, CAN/CSA-C22.2 no. 61010-1-12 safety standard

Applications

Test & Measurement

Contents

DSOX1102G+DSOX1B7T102 oscilloscope, Secure erase, Built-in help language support, Interface language support GUI menus, Power cord.
