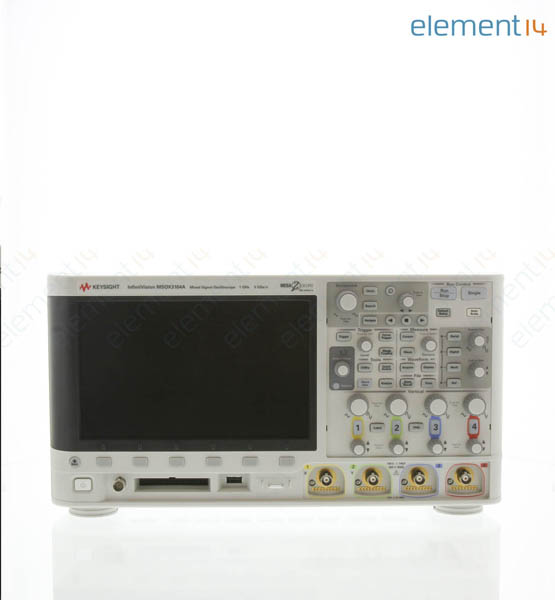

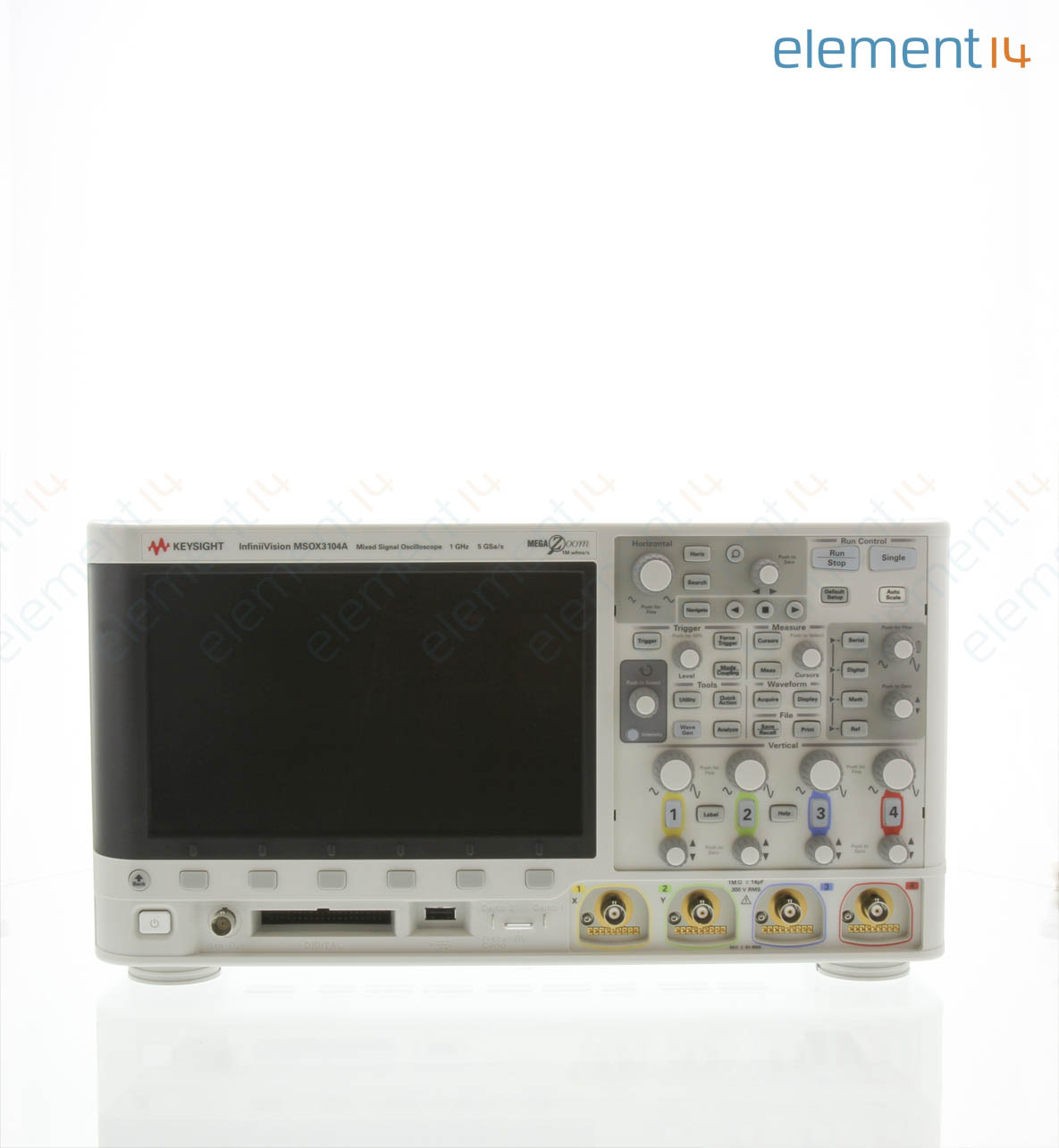

KEYSIGHT TECHNOLOGIES MSOX3104A
MSO / MDO Oscilloscope, InfiniiVision 3000 X-Series, 4+16 Channel, 1 GHz, 5 GSPS, 2 Mpts, 450 ps
- Manufacturer:
- KEYSIGHT TECHNOLOGIES KEYSIGHT TECHNOLOGIES
- Manufacturer Part No:
- MSOX3104A
- Newark Part No.:
- 75T5130
- Product Range
- InfiniiVision 3000 X-Series
- Technical Datasheet:
- MSOX3104A Datasheet
- ECAD / MCAD
-
Product Range Selector (InfiniiVision 3000 X-Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- InfiniiVision 3000 X-Series
- :
- 4+16 Channel
- :
- 1GHz
- :
- 5GSPS
- :
- 2 Mpts
- :
- 450ps
- :
- WVGA LCD Color
- :
- One 500MHz N2890A Passive Probe Per Channel (10:1), One N6450-60001 16 Digital Channel MSO Cable, Certificate of Calibration, Power Cord
- :
- 3 Years
- :
- US
Technical Documents (5)
Product Overview
The MSOX3104A offers entry-level price points to fit your budget with superior performance and optional capabilities that are not available in any other oscilloscope in its class. Our breakthrough technology delivers more scope for the same budget.
- High resolution 8.5-inch WVGA (800 x 480) display
- Up to 1,000,000 wfms/s update rate
- Fast, responsive MegaZoom IV deep memory, up to 4M
- Serial protocol analyser (optional)
- Upgradable bandwidth, memory, MSO, WaveGen built-in 20MHz function generator and measurement apps
- Connectivity: USB host (one front, one back), USB device, LAN (optional), GPIB (optional)
- Dimensions (H x W x D): 8.05 x 14.98 x 5.57"
Applications
Maintenance & Repair, Test & Measurement
0 In stock
Non-Cancelable / Non Returnable
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
$31,950.54
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | $31,950.54 | |
