N5181B/503
RF Signal Generator, RF, 3 GHz, MXG X Series, AM, FM, PM, 3 Years

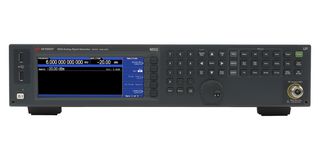

Image is for illustrative purposes only. Please refer to product description.
ManufacturerKEYSIGHT TECHNOLOGIES
Manufacturer Part NoN5181B/503
Newark Part No.94T7104
Product RangeMXG X Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Product Information
ManufacturerKEYSIGHT TECHNOLOGIES
Manufacturer Part NoN5181B/503
Newark Part No.94T7104
Product RangeMXG X Series
Technical Datasheet
Signal Generator TypeRF
Bandwidth3GHz
No. of Channels-
Product RangeMXG X Series
Signal Generator ModulationAM, FM, PM
Manufacturer Warranty3 Years
Plug Type-
SVHCNo SVHC (17-Jan-2023)
Product Overview
N5181B/503 is a 9KHz (5MHz I/Q mode) to 3GHz MXG X-Series RF analog signal generator. It is fine-tuned to be your “golden transmitter” in R&D with 9KHz (5MHz I/Q mode) to 3GHz frequency coverage. It generates the signals you need with outstanding hardware performance, including unmatched phase noise and spurious characteristics.
- Drive power amplifiers and characterize nonlinear behavior with industry-leading output power
- Test receiver performance by simulating complex modulation with multi-function generator capability
- Lower your cost of ownership with 3-year cal cycles and comprehensive solutions for self-maintenance
Technical Specifications
Signal Generator Type
RF
No. of Channels
-
Signal Generator Modulation
AM, FM, PM
Plug Type
-
Bandwidth
3GHz
Product Range
MXG X Series
Manufacturer Warranty
3 Years
SVHC
No SVHC (17-Jan-2023)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (17-Jan-2023)
