N8733A/230/831

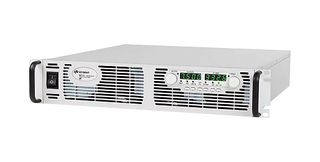

N8733A/230/831 is a 15V, 220A, 3300W, single output DC power supply with 230 and 831 option. It offers flexible AC input options, analogue/resistance control of output voltage and current, as well as parallel and series connection of multiple supplies to achieve more output current or voltage respectively. This economical supply offers many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development for R&D, design validation, and manufacturing engineers in the aerospace/defense, automotive, component, and communications industries.

• Option 230: 190-240V, single-phase AC, 50/60Hz input
• Option 831: 50 unterminated line cord for 230V single-phase AC input voltage
• Programming accuracy of voltage: 0.05%+7.5mV, current: 0.1%+440mA
• Output ripple and noise CV p-p: 60mV, CV rms: 8mV
• Small, high density 2U package and 19" wide package
• Built-in voltage and current measurement
• Full protection from over-voltage and over-current
• Built-in web server provides remote access and control of the instrument via a standard browser
• LAN, USB, and GPIB interfaces standard
• Dimension is height 3.46" x width 16.65" x depth 17.42"
