1065-2
RF / Coaxial Connector, 10kV Coaxial, Straight Plug, Crimp, Beryllium Copper

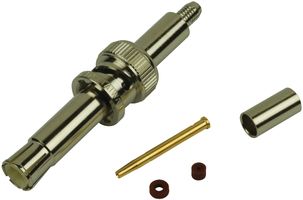

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
Product Information
ManufacturerKINGS
Manufacturer Part No1065-2
Newark Part No.17B5421
Technical Datasheet
Connector Type10kV Coaxial
Connector Body StyleStraight Plug
Coaxial TerminationCrimp
Impedance-
Coaxial Cable Types-
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
Frequency Max-
Connector MountingCable Mount
Product Range-
SVHCTo Be Advised
Product Overview
The 1065-2 is a female straight RF/Coaxial Connector with crimp termination. The 10 KV series high voltage plug feature special high voltage interfaces and are ideally suited for pulse applications. High voltage connector is designed for use where the normal operating voltage of standard coaxial connectors is inadequate. Major uses include research laboratories, manufacturers of nuclear control instrumentation and accelerator laboratories.
- Non-constant impedance
- Ideally suited for pulse applications
- Durable brass bodies with nickel plating
- High density polyethylene insulator
- PTFE insulators available in some designs for higher temperature applications
- Operating voltage rating of 10kVDC
- Weatherproof
Applications
RF Communications, Defence, Military & Aerospace, Medical, Sensing & Instrumentation
Technical Specifications
Connector Type
10kV Coaxial
Coaxial Termination
Crimp
Coaxial Cable Types
-
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
SVHC
To Be Advised
Connector Body Style
Straight Plug
Impedance
-
Contact Material
Beryllium Copper
Frequency Max
-
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
