77 01 115

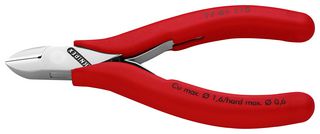

77 01 115 is a 4 1/2inch electronic diagonal cutter. The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutting capacity - up to 1/16" for soft wire, 3/64" for medium and up to 1/64" for hard wire. Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger.

• For fine cutting work in electronics and fine mechanics
• Sturdy, zero-backlash box joint, ball bearing chrome steel, red color
• Low friction double spring for gentle and even opening
• Cutting edges induction hardened (approx. 62 HRC), polished surface finish
• Semi-flush with small bevel, ball bearing steel; laser-hardened cutting edges
• Semi-flush cut, load-optimized for a more direct feel when working
• Plastic-coated handles, cutting edge hardness approx. 62 HRC
• Cutters additionally laser hardened, cutter hardness at least 60 HRC
• Ø 1.2mm cutting capacities medium hard wire (diameter)
• 4 1/2" length, 2" width, 9/16" height

Warnings

Do no use on live circuits. Always switch off power. Always wear approved eye protection.
