AL-TMTFB-9
Coaxial Surge Protector, Coaxial, 5 kA, 50 ohm, Panel, 1 Pole

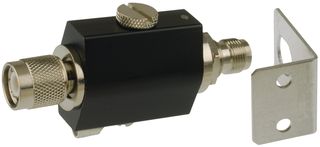

Image is for illustrative purposes only. Please refer to product description.
599 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $111.180 |
Price for:Each
Minimum: 1
Multiple: 1
$111.18
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerL-COM
Manufacturer Part NoAL-TMTFB-9
Newark Part No.23T4272
Technical Datasheet
Peak Surge Current5kA
Impedance50ohm
Suppressor TypeData Line
Suppressor MountingPanel
Product Range-
No. of Poles1 Pole
SVHCTo Be Advised
Product Overview
The AL-TMTFB series Coaxial Lightning Surge Protector gas discharge tube suppressor is 90V and unit features a TNC-male to TNC-Female connector with a rubber O-ring seal for mounting through an enclosure wall or with the included aluminium mounting bracket. It is suitable for applications where DC is carried through the coaxial cable, such as remote amplifiers and LNA's. A ground lug and terminal are supplied directly on the lightning protector housing, which provides superior grounding.
- Reliable performance from DC to 3GHz
- Protector will pass DC
- Replaceable gas tube element
- Optional 230V, 350V and 600V gas tubes available
- Bidirectional protection
Applications
Wireless, Communications & Networking, Fibre Optics, Safety, Power Management, Portable Devices, RF Communications
Technical Specifications
Peak Surge Current
5kA
Suppressor Type
Data Line
Product Range
-
SVHC
To Be Advised
Impedance
50ohm
Suppressor Mounting
Panel
No. of Poles
1 Pole
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
