CSNULL9FF-5
Computer Cable, D Sub 9 Position Receptacle, D Sub 9 Position Receptacle, 5 ft, 1.5 m, Gray
Need more?
| Quantity | Price |
|---|---|
| 1+ | $43.070 |
Product Information
Product Overview

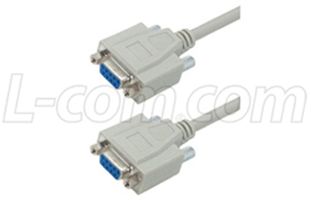

The CSNULL9FF-5 is a 5ft deluxe null modem Cable Assembly with DB9 female to DB9 female connectors. The CSNULL series of cable assembly features the same construction as the CSMN series but are wired to the most common null modem wiring schemes. The transmit data and receive data signals are crossed to allow two DTE or DCE devices to communicate. All assembly utilize 26AWG stranded conductors with foil shielding for flexibility and performance. Backshells are fully moulded with copper shielding for better immunity to EMI/RFI. Mating hardware is 4-40 thumbscrews which makes securing without tools quick and easy.
- Allows two DTE or DCE devices to communicate with no conflict in data transmission
- Wired to the most common null modem wiring schemes
- 360° Fully shielded for protection against EMI/RFI
- Gold-plated contacts to provide reliable connections with repeated mating cycles
- Pins 2 and 3 crossed (all else straight through) to form a reverser null modem wiring scheme
Applications
Communications & Networking
Technical Specifications
D Sub 9 Position Receptacle
5ft
Gray
To Be Advised
D Sub 9 Position Receptacle
1.5m
-
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
