ICR3104

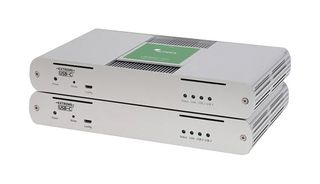

ICR3104 is an USB 3.1 Raven™ 4-port Cat6a/7 USB extender. It is 4 port USB 3.1 SuperSpeed USB extender that is backward compatible with USB 2.0 and 1.1 and provides the ability to connect all USB 3.1 Gen 1 (5Gbps) device types to a host across a point-to-point connection up to 100m over CAT 6a/7. The Raven 3104 also includes an Ethernet pass-through for connecting to network-enabled devices or to use existing infrastructure without losing LAN connectivity. A true plug-and-play solution, the Raven 3104 USB extender is compatible with all leading operating systems. The Raven 3104 features a locking power connector on both the LEX and REX units. Typical applications are conferencing cameras, video matrix systems, remote storage, security, and monitoring.

• Supports all USB 3.2 Gen 1, 2.0, 1.1 devices simultaneously at full bandwidth
• 100/1000 Ethernet channel, LAN pass-through
• Single cable, CAT 6a/7 up to 100m, point-to-point connection
• Supports all USB transfer types (control, interrupt, isochronous and bulk)
• Optimized for camera and video capture devices
• Transparent USB extension supporting USB 3, 2 and 1
• Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
• LEX (local extender)/REX (remote extender) dimension is 5.4" x 9.1" x 1.3"
• LEX (local extender)/REX (remote extender) material is silver anodized aluminum
• Operating temperature range from 0°C to 50°C, 2-year warranty

Contents

Remote extender (REX), Local extender (LEX), 1 x USB 3.2 Gen 1 cable, 2x international locking AC adapters, 2x country specific power cords, Quick start guide.
