195206-228

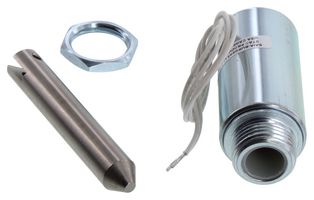

Linear Solenoid, Pull, Continuous, 13.8 VDC, 29.4 N, 19.2 ohm, 10 W
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 22 week(s)
| Quantity | Price |
|---|---|
| 250+ | $39.380 |
Price for:Each
Minimum: 250
Multiple: 1
$9,845.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLEDEX
Manufacturer Part No195206-228
Newark Part No.20M1820
Technical Datasheet
Coil Voltage13.8VDC
Holding Force29.4N
Holding Force - Metric29.4N
Solenoid OperationPull
Coil Resistance19.2ohm
Coil Power Continuous10W
Solenoid Duty CycleContinuous
External Diameter25.91mm
External Length52.07mm
Product Range-
SVHCNo SVHC (15-Jan-2019)
Product Overview
The 195206-228 is a 1 x 2-inch Tubular Solenoid with pull engagement and continuous duty cycle. It is well-suited to lock/latch and battery operations. The STA® solenoid housing case provides greater shock and vibration integrity, functional advantages are ideal for high force, short stroke applications and ON/OFF operation. It features 60° plunger configurations without anti-rotation flat on mounting.
- Average power consumption, high force output
Applications
Power Management, Industrial
Technical Specifications
Coil Voltage
13.8VDC
Holding Force - Metric
29.4N
Coil Resistance
19.2ohm
Solenoid Duty Cycle
Continuous
External Length
52.07mm
SVHC
No SVHC (15-Jan-2019)
Holding Force
29.4N
Solenoid Operation
Pull
Coil Power Continuous
10W
External Diameter
25.91mm
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (15-Jan-2019)
