81100000005

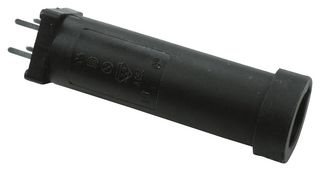

Fuseholder, Cartridge, 1 Fuse, 16 A, 250 VAC, 250 VDC, 5mm x 20mm, 6.3mm x 32mm, Solder Lug
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part No81100000005
Newark Part No.02P0350
Product Range811 Series
Technical Datasheet
119 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $4.330 |
| 10+ | $3.310 |
| 25+ | $3.030 |
| 50+ | $2.740 |
| 100+ | $2.530 |
| 500+ | $2.100 |
| 1000+ | $1.940 |
Price for:Each
Minimum: 1
Multiple: 1
$4.33
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No81100000005
Newark Part No.02P0350
Product Range811 Series
Technical Datasheet
Fuse Holder TypeCartridge Fuse Holder
Fuse Current16A
Fuse Size Held5mm x 20mm, 6.3mm x 32mm
Holder TerminalsSolder Lug
No. of Fuses1Fuses
Product Range811 Series
Voltage Rating VAC250V
Voltage Rating VDC250V
SVHCTo Be Advised
Product Overview
The 81100000005 is a black PC-mount Cartridge Fuse Holder made of thermoplastic polyamide PA 6.6 body/cap, tinned solderable terminals and corrosion protected copper alloy metal parts. It is suitable for use with the Shocksafe 5 x 20/6.3 x 32mm fuses.
- UL94V-0 Flammability rating
- IP40 Protection rating
- -25 to 70°C Operating temperature range
Applications
Safety
Technical Specifications
Fuse Holder Type
Cartridge Fuse Holder
Fuse Size Held
5mm x 20mm, 6.3mm x 32mm
No. of Fuses
1Fuses
Voltage Rating VAC
250V
SVHC
To Be Advised
Fuse Current
16A
Holder Terminals
Solder Lug
Product Range
811 Series
Voltage Rating VDC
250V
