01550120ZXA
Fuseholder, Cartridge In Line, 1 Fuse, 20 A, 32 V, 1/4" x 1.1/4", 6.3mm x 32mm, Wire Leaded

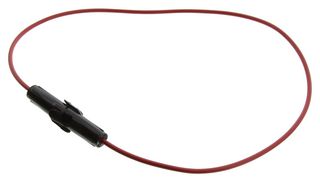

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part No01550120ZXA
Newark Part No.67K1436
Product Range155 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 21 week(s)
| Quantity | Price |
|---|---|
| 100+ | $3.310 |
| 500+ | $2.740 |
| 1000+ | $2.530 |
Price for:Each
Minimum: 100
Multiple: 100
$331.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No01550120ZXA
Newark Part No.67K1436
Product Range155 Series
Technical Datasheet
Fuse Holder TypeCartridge In Line Fuse Holder
Fuse Current20A
Fuse Size Held1/4" x 1.1/4", 6.3mm x 32mm
Holder TerminalsWire Leaded
No. of Fuses1Fuses
Product Range155 Series
Voltage Rating VAC32V
Voltage Rating VDC32V
SVHCTo Be Advised
Product Overview
The 01550120ZXA is a 20A/32V twist-lock in-line Cartridge Fuse Holder with black thermoplastic, 155-series, nickel-plated brass wire leaded terminals. This fuse holder is compatible with low voltage SFE fuse applications.
- 0.14" Diameter hole for insulated wire
- -40 to 75°C Ambient temperature range
- UL94V-2 Flammability rating
Applications
Safety
Contents
SFE fuse (listed) and 19" loop of 14AWG red vinyl insulated wire.
Technical Specifications
Fuse Holder Type
Cartridge In Line Fuse Holder
Fuse Size Held
1/4" x 1.1/4", 6.3mm x 32mm
No. of Fuses
1Fuses
Voltage Rating VAC
32V
SVHC
To Be Advised
Fuse Current
20A
Holder Terminals
Wire Leaded
Product Range
155 Series
Voltage Rating VDC
32V
Technical Docs (2)
Alternatives for 01550120ZXA
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
