MDRR-DT 15-20 F
Reed Switch, MDRR-DT Series, SPST-CO, Through Hole, 1.5 A, 175 VDC, 5 W

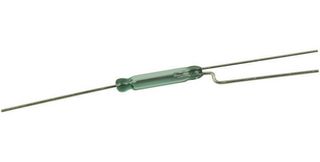

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part NoMDRR-DT 15-20 F
Newark Part No.24C6463
Product RangeMDRR-DT Series
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $6.660 |
| 10+ | $5.550 |
| 25+ | $5.150 |
| 50+ | $4.870 |
| 100+ | $4.590 |
| 500+ | $4.060 |
| 1000+ | $3.870 |
Price for:Each
Minimum: 1
Multiple: 1
$6.66
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part NoMDRR-DT 15-20 F
Newark Part No.24C6463
Product RangeMDRR-DT Series
Technical Datasheet
Product RangeMDRR-DT Series
Contact ConfigurationSPST-CO
Switch MountingThrough Hole
Contact Current Max1.5A
Switching Voltage Max175VDC
Switching Power Max5W
Contact Resistance Max0.1ohm
Operate AT Min15AT
Operate AT Max20AT
SVHCTo Be Advised
Product Overview
The MDRR-DT 15-20 F is a single-pole double-throw (SPDT) miniature change-over Reed Switch with glass envelope, UL recognized and capable of switching 175VDC at 5W. The MDRR-DT series switch has hermetically sealed switch contacts are not affected by and have no effect on their external environment. It can be used as changeover or NO contact.
- No minimum switching voltage or current
- Zero operating power required for contact closure
- Fit and forget durability
Applications
Industrial, Sensing & Instrumentation, Consumer Electronics
Technical Specifications
Product Range
MDRR-DT Series
Switch Mounting
Through Hole
Switching Voltage Max
175VDC
Contact Resistance Max
0.1ohm
Operate AT Max
20AT
Contact Configuration
SPST-CO
Contact Current Max
1.5A
Switching Power Max
5W
Operate AT Min
15AT
SVHC
To Be Advised
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
