RST 3-RKMV 3-224/0.6M

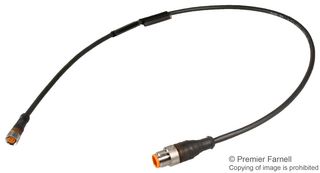

Sensor Cable, M12 Plug, M12 Receptacle, 3 Positions, 0.6 m, 1.96 ft, RST-RKMV Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLUMBERG AUTOMATION
Manufacturer Part NoRST 3-RKMV 3-224/0.6M
Newark Part No.05X9079
Product RangeRST-RKMV Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 9 week(s)
| Quantity | Price |
|---|---|
| 1+ | $40.840 |
| 5+ | $34.850 |
Price for:Each
Minimum: 1
Multiple: 1
$40.84
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLUMBERG AUTOMATION
Manufacturer Part NoRST 3-RKMV 3-224/0.6M
Newark Part No.05X9079
Product RangeRST-RKMV Series
Technical Datasheet
Connector Type AM12 Sensor Straight 3 Position Plug
Connector to ConnectorM12 Straight Plug to M12 Straight Receptacle
Connector Type AM12 Plug
Connector Type BM8 Sensor Straight 3 Position Receptacle
Connector Type BM12 Receptacle
No. of Positions3 Positions
Cable Length - Metric0.6m
Cable Length - Imperial1.96ft
Product RangeRST-RKMV Series
SVHCLead
Product Overview
The RST 3-RKMV 3-224/0.6M is a 0.6m Double-ended Cordset with 3-position straight male to female connection. This sensor cable comes with a halogen-free black PUR outer jacket, CuZn contacts and self-extinguishing TPU housing/moulded body. It is suitable for actuators and distribution boxes.
- Nickel-plated CuZn coupling nut
- 0.34mm² Conductor size
- 4A Nominal current at 40°C
- 60V Nominal voltage
- 63V Rated voltage
- <gt/>10⁹Ω Insulation resistance
Applications
Sensing & Instrumentation
Technical Specifications
Connector Type A
M12 Sensor Straight 3 Position Plug
Connector Type A
M12 Plug
Connector Type B
M12 Receptacle
Cable Length - Metric
0.6m
Product Range
RST-RKMV Series
Connector to Connector
M12 Straight Plug to M12 Straight Receptacle
Connector Type B
M8 Sensor Straight 3 Position Receptacle
No. of Positions
3 Positions
Cable Length - Imperial
1.96ft
SVHC
Lead
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
