1453411

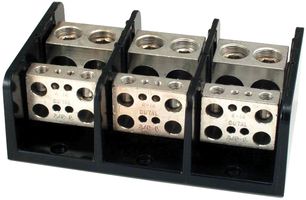

Panel Mount Barrier Terminal Block, 840 A, 600 V, 3 Pole, 2, Screw, 2 AWG
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMARATHON SPECIAL PRODUCTS
Manufacturer Part No1453411
Newark Part No.07H2106
Also Known AsGTIN UPC EAN: 784337 53411
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerMARATHON SPECIAL PRODUCTS
Manufacturer Part No1453411
Newark Part No.07H2106
Also Known AsGTIN UPC EAN: 784337 53411
Technical Datasheet
Rated Current840A
Rated Voltage600V
No. of Poles3 Pole
Line Side Connections Per Pole2
Line Side Connection MethodScrew
Line Side Wire Size Max2AWG
Load Side Connections Per Pole8
Load Side Connection MethodScrew
Load Side Wire Size Max000AWG
Product Range-
SVHCNo SVHC (17-Jan-2022)
Product Overview
The 1453411 is a 3-position barrier Power Distribution Block, aluminum contacts with tin plated. Phenolic insulator, screw line side connection method and 1 line side connections per pole.
- 14 to 2AWG wire size
Applications
Power Management
Technical Specifications
Rated Current
840A
No. of Poles
3 Pole
Line Side Connection Method
Screw
Load Side Connections Per Pole
8
Load Side Wire Size Max
000AWG
SVHC
No SVHC (17-Jan-2022)
Rated Voltage
600V
Line Side Connections Per Pole
2
Line Side Wire Size Max
2AWG
Load Side Connection Method
Screw
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
