406

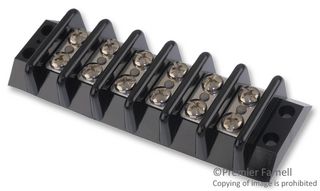

Panel Mount Barrier Terminal Block, 2 Row, 6 Positions, 12 AWG, 10 AWG, 17.46 mm, 30 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMARATHON SPECIAL PRODUCTS
Manufacturer Part No406
Newark Part No.90B1290
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
| Quantity | Price |
|---|---|
| 1+ | $44.210 |
Price for:Each
Minimum: 25
Multiple: 25
$1,105.25
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMARATHON SPECIAL PRODUCTS
Manufacturer Part No406
Newark Part No.90B1290
Technical Datasheet
No. of Rows2 Row
No. of Positions6Positions
Wire Size AWG Min12AWG
Wire Size AWG Max10AWG
Pitch Spacing17.46mm
Rated Current30A
Rated Voltage600V
Product Range-
SVHCNo SVHC (17-Jan-2022)
Product Overview
The 406 is a 6-pole 30A closed back Terminal Block with unprepared wire. It has tin-plated brass connector (contact), phenolic insulator base and a stainless steel drive screw (rivet).
- 10000A (Default) Short circuit current rating
- Approved for factory and field wiring
- 20lb-inch Torque
- UL94V-1 Flammability
- -40 to 150°C Temperature range
Applications
Industrial
Technical Specifications
No. of Rows
2 Row
Wire Size AWG Min
12AWG
Pitch Spacing
17.46mm
Rated Voltage
600V
SVHC
No SVHC (17-Jan-2022)
No. of Positions
6Positions
Wire Size AWG Max
10AWG
Rated Current
30A
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2022)
