                      RST-10000-24

                      AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 9.6 kW, 24 V, 400 A

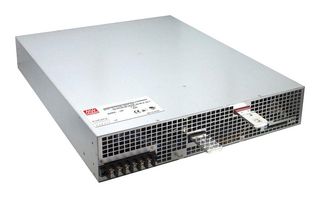

                      MEAN WELL RST-10000-24
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerMEAN WELL
                      Manufacturer Part NoRST-10000-24
                      Newark Part No.01AH7531
                      Product RangeRST-10000 Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Available

                      Product Information

                      ManufacturerMEAN WELL
                      Manufacturer Part NoRST-10000-24
                      Newark Part No.01AH7531
                      Product RangeRST-10000 Series
                      Technical Datasheet

                      Data Sheet

                      Power Supply ApplicationsITE
                      No. of Outputs1Outputs
                      Output Power Max9.6kW
                      Output Voltage - Output 124V
                      Output Current - Output 1400A
                      Output Voltage - Output 2-
                      Output Current - Output 2-
                      Output Voltage - Output 3-
                      Output Current - Output 3-
                      Output Voltage - Output 4-
                      Output Current - Output 4-
                      Input Voltage VAC196V AC to 305V AC, 340V AC to 530V AC
                      Power Supply Output TypeAdjustable, Fixed
                      Product RangeRST-10000 Series
                      SVHCNo SVHC (23-Jan-2024)

                      Product Overview

                      RST-10000-24 is a RST-10000 series 10KW single output enclosed type AC/DC power supply. This offers the models with the DC output mostly demanded from the industry. It is cooled by the built-in fan with fan speed control, working for the temperature up to 70°C. It provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power. It includes short circuit, overload, over voltage, over temperature, fan fail protection. Application includes factory control or automation apparatus, test and measurement instrument, laser related machine, burn-in facility, RF application, electric scooter or vehicle charger station, constant current source. Approved by UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, IS13252(Part1)/IEC60950-1, EAC TP TC 004.

                      • Input voltage range from 3 3-wire / 196 to 305VAC, 3 4-wire / Y 340 to 530VAC, output voltage is 24V
                      • Output rated current is 400A, output rated power is 9600W, typical efficiency is 88.5%
                      • Built -in active PFC function, forced air cooling by built-in DC fan
                      • Output voltage and constant current level programmable, active current sharing upto 2000W(1+1)
                      • Built-in remote ON-OFF control / remote sense / auxiliary power / alarm signal
                      • 5 years warranty
                      • Working temperature range from -30 to +70°C
                      • Dimension is (L x W x H) 21.25 x 16.69 x 3.28inch

                      Technical Specifications

                      Power Supply Applications

                      ITE

                      Output Power Max

                      9.6kW

                      Output Current - Output 1

                      400A

                      Output Current - Output 2

                      -

                      Output Current - Output 3

                      -

                      Output Current - Output 4

                      -

                      Power Supply Output Type

                      Adjustable, Fixed

                      SVHC

                      No SVHC (23-Jan-2024)

                      No. of Outputs

                      1Outputs

                      Output Voltage - Output 1

                      24V

                      Output Voltage - Output 2

                      -

                      Output Voltage - Output 3

                      -

                      Output Voltage - Output 4

                      -

                      Input Voltage VAC

                      196V AC to 305V AC, 340V AC to 530V AC

                      Product Range

                      RST-10000 Series

                      Technical Docs (2)

                      Technical Data Sheet EN

                      Product Change Notice EN

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (23-Jan-2024)
