AC164113

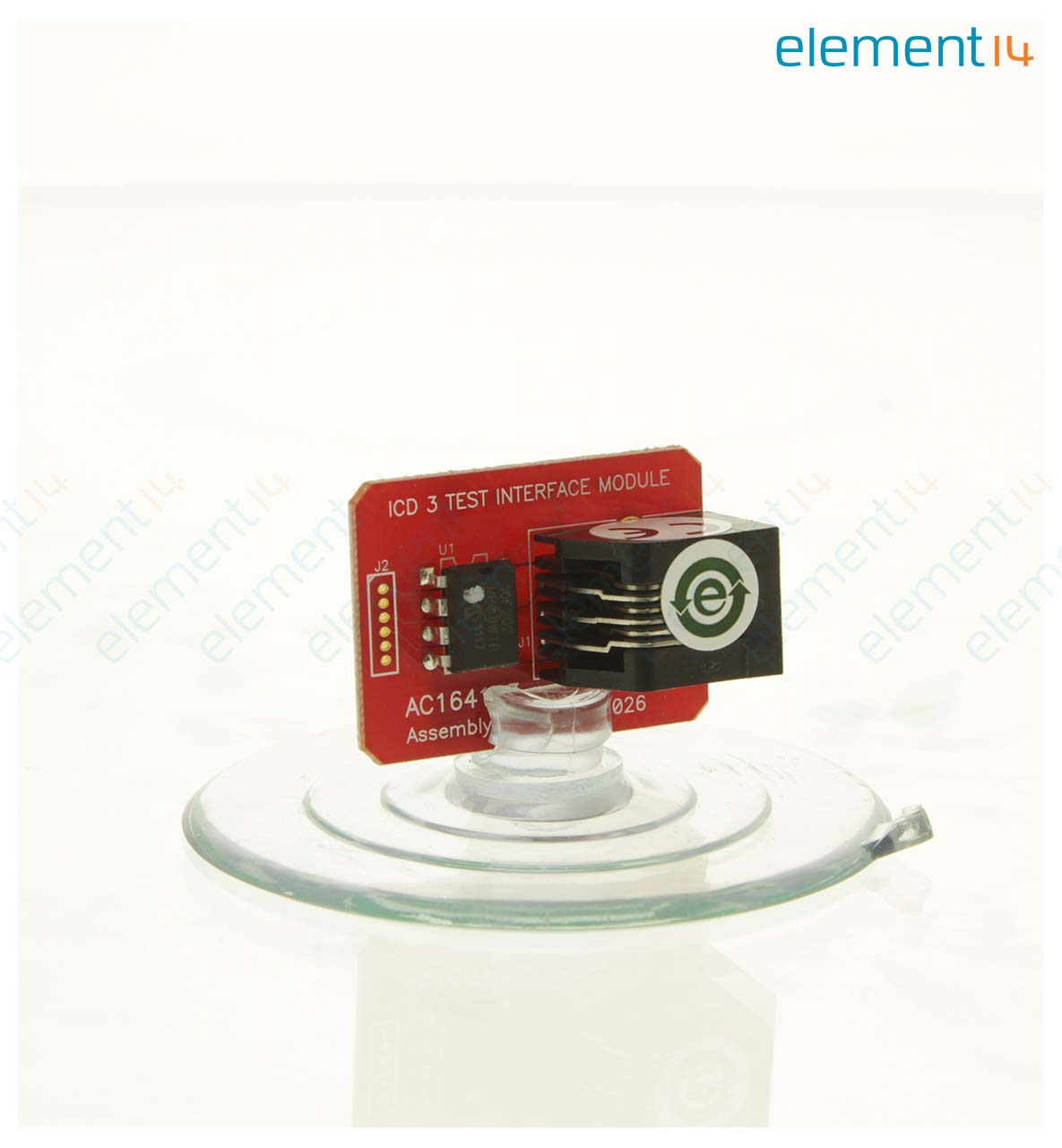

Test Interface Board, Isolate Application Interfacing Problems when using MPLAB ICD 3

MICROCHIP AC164113
360°
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MICROCHIP MICROCHIP
Manufacturer Part No:
AC164113
Newark Part No.:
85R0072
Technical Datasheet:
AC164113   Datasheet
ECAD / MCAD
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
-

:
-

:
-

:
-

:
-

:
MPLAB ICD 3 Module

:
Interface Board AC164113

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

Product Overview

The AC164113 a Test Interface Board is aid to isolate application interfacing problems when using the MPLAB ICD 3 (DV164035) as a debugger or programmer. Using the test interface board and running confidence test options under MPLAB IDE allows testing of the basic functions and signals of an MPLAB ICD 3. The diagnostic results under MPLAB IDE let the user know when the MPLAB ICD 3 is fully functional or if there is a malfunction.

Applications

Embedded Design & Development
