MICROCHIP AC164134
Daughter Board, 2.4 GHz RF Transceiver Module, SPI Bus Serial EEPROM, ZigBee/MiWi P2P Wireless
- Manufacturer:
- MICROCHIP MICROCHIP
- Manufacturer Part No:
- AC164134
- Newark Part No.:
- 15N7069
- Technical Datasheet:
- AC164134 Datasheet
- ECAD / MCAD
-
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Microchip
- :
- PIC, dsPIC
- :
- -
- :
- MRF24J40
- :
- -
- :
- Microchip PIC18 Explorer & Explorer 16 Development Boards
- :
- Daughter Board
- :
- -
Technical Documents (3)
Product Overview

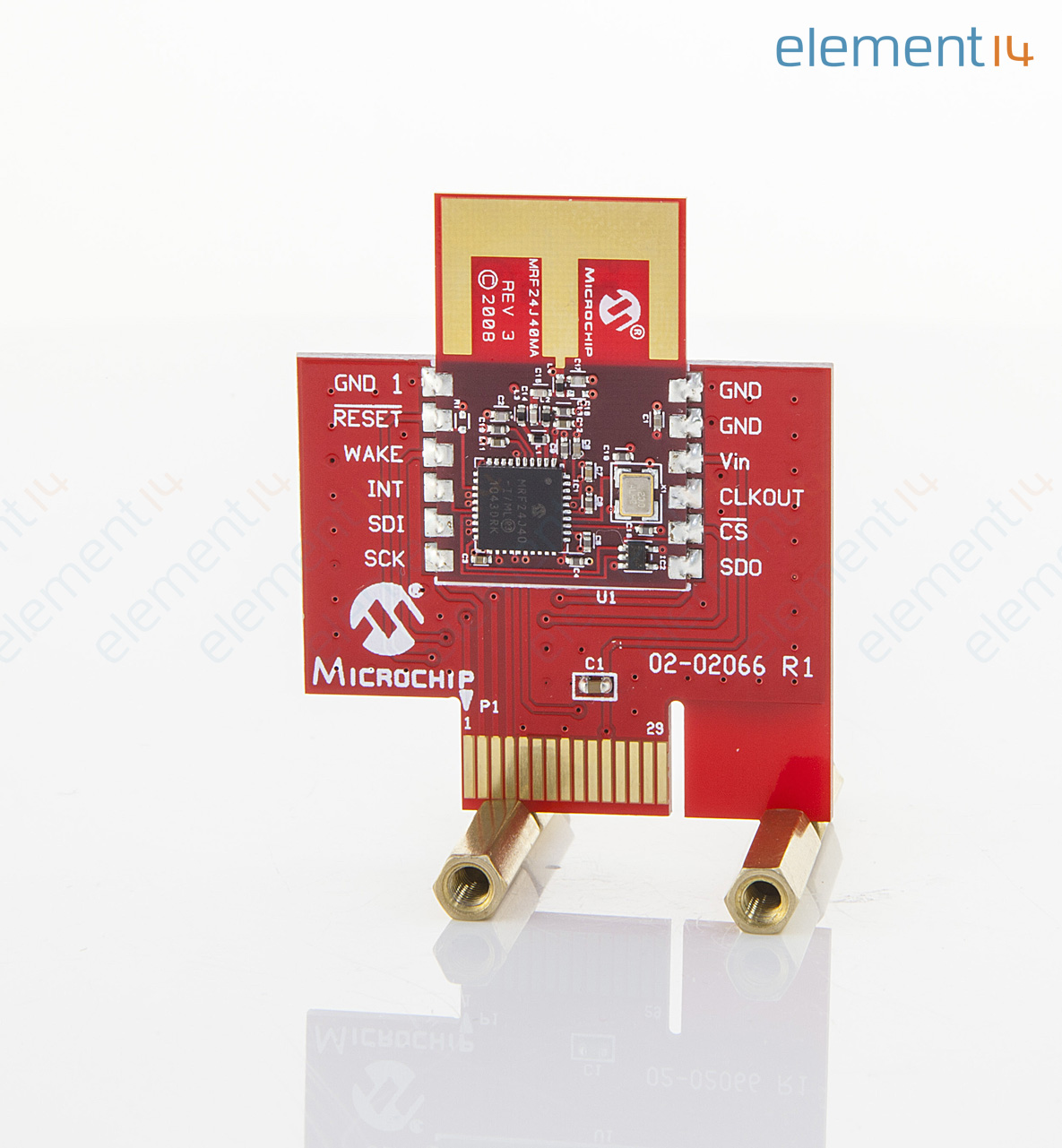

The AC164134 is a MRF24J40MA PICTail Plus 2.4GHz RF Card. The MRF24J40MA PICtail Plus 2.4GHz Radio Frequency Card is built with the NEW agency certified MRF24J40MA IEEE 802.15.4 RF transceiver module. The MRF24J40MA module operates in the non licensed 2.4GHz frequency band and is FCC, IC and ETSI compliant. The integrated module design frees the integrator from extensive RF and antenna design, and regulatory compliance testing, allowing quicker time to market. The MRF24J40MA module is compatible with ZigBee, MiWi and MiWi P2P software stacks. The module is attached to a PICTail Plus carrier board allowing the RF Board to be used with an explorer 16 development kit. the MRF24J40MA is a perfect solution for low cost, low power complete embedded wireless PAN applications.
- 2.4GHz IEEE 802.15.4 transceiver module
- Supports ZigBee, MiWi, and MiWi P2P protocols
- Integrated crystal, internal voltage regulator, matching circuitry and PCB antenna
- Radio regulation certification for United States (FCC), Canada (IC) and Europe (ETSI)
- Compatible with microcontroller families (PIC16F, PIC18F, PIC24F/H, dsPIC33 and PIC32)
- Hardware CSMA-CA mechanism, automatic ACK response and FCS check
- Automatic packet retransmit capable
- Hardware security engine (AES-128)
Applications
Embedded Design & Development, Wireless, Communications & Networking, Consumer Electronics, Building Automation
