                      AT91SAM9CN11-EK

                      Evaluation Board, Display Module, AC/DC Power Supply, RS232

                      Date/Lot Code

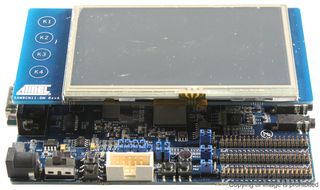

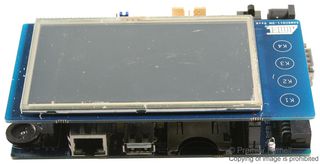

                      MICROCHIP AT91SAM9CN11-EK
                      MICROCHIP AT91SAM9CN11-EK
                      MICROCHIP AT91SAM9CN11-EK
                      MICROCHIP AT91SAM9CN11-EK
                      MICROCHIP AT91SAM9CN11-EK
                      MICROCHIP AT91SAM9CN11-EK
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerMICROCHIP
                      Manufacturer Part NoAT91SAM9CN11-EK
                      Newark Part No.45W2190
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      1 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      Available in quantity shown. To order more than shown inventory, contact sales
                      QuantityPrice
                      1+$181.510
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $181.51
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerMICROCHIP
                      Manufacturer Part NoAT91SAM9CN11-EK
                      Newark Part No.45W2190
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerAtmel
                      No. of Bits32bit
                      Silicon Family NameAT91SAM9xxx
                      Core ArchitectureARM
                      Core Sub-ArchitectureARM926EJ-S
                      Silicon Core NumberSAM9CN11
                      Kit ContentsEval Board SAM9CN11, Display Module, AC/DC Power Supply, RS232, USB & RJ45 Cables, Welcome Letter
                      Product Range-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      AT91SAM9CN11-EK evaluation kit enables rapid evaluation and code development of applications running on a SAM9CN11 device. It introduces system level concepts, such as power distribution, memory, and interface assignments. The SAM9CN11-EK board is built around on the integration of an ARM 926 based microcontroller (BGA 217 package) with on board SDRAM, NAND Flash and a set of popular peripherals. It is designed to provide a high performance processor evaluation solution with high flexibility for various kinds of applications. The evaluation kit allows users to extensively evaluate, prototype and create application specific designs.

                      • SAM9CN11 microcontroller in BGA217 package
                      • 16MHz crystal and 32.768KHz crystal
                      • 1KB 1 wire EEPROM, SD/MMC interface
                      • Ethernet physical transceiver layer with RJ45 connector
                      • JTAG/ICE port, USB Host and Device, ZigBee
                      • Add on display module TFT LCD module with touch, QTouch elements for user QTouch (K1 to K4)
                      • Audio codec with input stereo headphone and microphone
                      • On board power regulation and backup battery
                      • Two user LEDs and one power LED
                      • System buttons and one user button

                      Applications

                      Communications & Networking

                      Contents

                      Evaluation Kit (EK) board, Display Module (DM) board, Power supply, Cables, A Welcome letter.

                      Warnings

                      The board system must not be subjected to high electrostatic potentials. We strongly recommend using a grounding strap or similar ESD protective device when handling board in hostile ESD environments.

                      Technical Specifications

                      Silicon Manufacturer

                      Atmel

                      Silicon Family Name

                      AT91SAM9xxx

                      Core Sub-Architecture

                      ARM926EJ-S

                      Kit Contents

                      Eval Board SAM9CN11, Display Module, AC/DC Power Supply, RS232, USB & RJ45 Cables, Welcome Letter

                      SVHC

                      No SVHC (21-Jan-2025)

                      No. of Bits

                      32bit

                      Core Architecture

                      ARM

                      Silicon Core Number

                      SAM9CN11

                      Product Range

                      -

                      Technical Docs (4)

                      Operating Instructions EN

                      element14 Technical Page EN

                      element14 Technical Page EN

                      Technical Data Sheet EN

                      Associated Products

                      1 Product Found

                      Legislation and Environmental

                      US ECCN:3A991A2
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:To be advised
                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate
