AT91SAM9G15-EK
Evaluation Board, Graphics LCD Controller, RS232, ARM MCU, USB & RJ45, Serial Interface
Video
Video

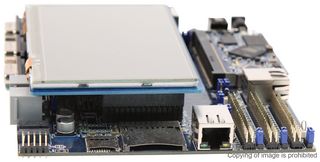

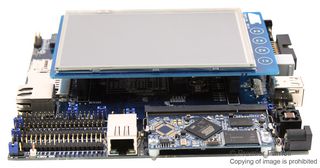

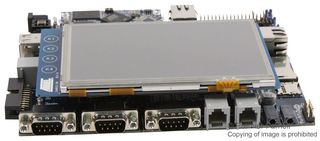

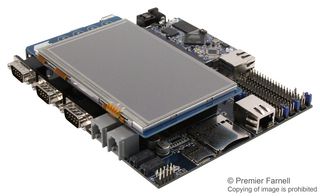

Image is for illustrative purposes only. Please refer to product description.
- Manufacturer:
- MICROCHIP MICROCHIP
- Manufacturer Part No:
- AT91SAM9G15-EK
- Newark Part No.:
- 68T5196
- Technical Datasheet:
- AT91SAM9G15-EK Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Atmel
- :
- 32bit
- :
- AT91SAM9xxx
- :
- ARM
- :
- ARM926EJ-S
- :
- SAM9G15
- :
- Eval Board SAM9G15, CPU Module, AC/DC Power Supply, RS232, USB & RJ45 Cables, Welcome Letter
- :
- -
Technical Docs (4)
Product Overview
The AT91SAM9G15-EK is an evaluation kit that enables the evaluation and code development of applications running on a SAM9G15 device. The SAM9G15, based on the ARM926EJ-S processor, runs at 400MHz and integrates a rich set of peripherals to support embedded industrial applications that require advanced user interfaces and high speed communication. The SAM9G15 features a graphics LCD controller with 4 layer overlay and 2D acceleration (picture-in-picture, alpha blending, scaling, rotation, colour conversion) and a 10bit ADC that supports 4/5wire resistive touch screen panels. Multiple communication interfaces include a soft modem supporting exclusively the conexant SmartDAA line driver, HS USB host and device and FS USB host with dedicated on chip transceivers, two HS SDCard/SDIO/MMC interfaces, USARTs, SPIs, I2S and TWIs.
- Equipped with 400MHz CPU, external memory, DDR2-SDRAM (1Gb), NAND flash (2 or 4Gb),Three USB ports
- HS (EHCI) and FS (OHCI) host, multiplexed with HS USB device via micro AB connector
- HS (EHCI) and FS (OHCI) host, via standard type A connector
- FS only (OHCI) host, via standard type A connector
- Two Ethernet 10/100 interfaces with on board MAC controllers and RJ45 sockets
- Two high speed SD/MMC interfaces
- One ZigBee extension port and 24bit RGB interface
- One stereo CODEC interface with line-in and headphone jacks
- One telephone/modem interface with RJ11 connector
- 5.0" TFT-LCD module with 800x480 resolution backlight with resistive touch panel
Applications
Building Automation, Security, Consumer Electronics, Audio, Imaging, Video & Vision, Multimedia, Industrial, Automation & Process Control, Metering
Contents
One EK board with SAM9G15-CM cpu module, universal power supply with US, Europe and UK plug adapters, one 3V Lithium battery CR1225, one serial RS232 cable, one micro A/Btype USB cable, one RJ45 crossed cable.
Footnotes
One optional display module.
Warnings
The board must not be subjected to high electrostatic potentials. In risky ESD environments a grounding strap or similar protective device should be worn when handling the board.
0 In stock
Non-Cancelable / Non Returnable
$960.38
