                      AT91SAM9XE-EK

                      Evaluation Kit, Ethernet, JTAG, 32bit, USB Device Port Interface

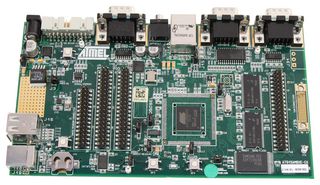

                      MICROCHIP AT91SAM9XE-EK
                      MICROCHIP AT91SAM9XE-EK
                      MICROCHIP AT91SAM9XE-EK
                      MICROCHIP AT91SAM9XE-EK
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerMICROCHIP
                      Manufacturer Part NoAT91SAM9XE-EK
                      Newark Part No.68T5216
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      Available to Order
                      Manufacturer Standard Lead Time: 15 week(s)
                      QuantityPrice
                      1+$1,011.030
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $1,011.03
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerMICROCHIP
                      Manufacturer Part NoAT91SAM9XE-EK
                      Newark Part No.68T5216
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerAtmel
                      No. of Bits32bit
                      Silicon Family NameAT91SAM9xxx
                      Core ArchitectureARM
                      Core Sub-ArchitectureARM926EJ-S
                      Silicon Core NumberSAM9XE
                      Kit ContentsEvaluation Kit for AT91SAM9XE, USB, RS232 & RJ45 Ethernet Cable, Power Supply Adapter, CD ROM
                      Product Range-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      The AT91SAM9XE-EK evaluation kit enables the evaluation and code development for applications running on an AT91SAM9XE device. The AT91SAM9XE128/256/512 is based on the integration of an ARM926EJ-S processor with fast ROM and RAM, 128, 256 or 512 Kbytes of flash and a wide range of peripherals. The embedded flash memory can be programmed in-system via the JTAG-ICE interface or via a parallel interface on a production programmer prior to mounting. Built in lock bits a security bit and MMU protect the firmware from accidental overwrite and preserve its confidentiality. The AT91SAM9XE128/256/512 embeds an Ethernet MAC, one USB device Port, and a USB host controller. It also integrates several standard peripherals, like six UARTs, SPI, TWI, timer counters, synchronous serial controller, ADC and a multimedia/SD Card interface. This controller includes a reset controller capable of managing the power-on sequence of the microcontroller and the complete system.

                      • 64MB of SDRAM memory, 256MB of NAND flash memory
                      • One serial data flash, One TWI serial EEPROM
                      • One USB device port interface, Two USB host port interfaces
                      • One DBGU serial communication port
                      • One complete MODEM serial communication port
                      • One additional serial communication port with RTS/CTS handshake control
                      • JTAG/ICE debug interface
                      • One PHY Ethernet 100-base TX with three status LED's
                      • One AT73C213 audio DAC, one data flash, SD/MMC card slot

                      Contents

                      AT91SAM9XE-EK board,„ universal input AC/DC power supply with US, UK and Europe plug adapter,„ one A/B type USB cable,„ one serial RS232 cable,„ one RJ45 crossed Ethernet cable,„ one CD ROM.
