DV164035

The DV164035 is a MPLAB ICD-3 in-circuit debugger. It is Microchip's latest and most cost-effective high-speed emulator for Microchip flash Digital signal controller (DSC) and microcontroller (MCU) devices. It debugs and programs PIC(R) flash microcontrollers and dsPIC(R) DSCs with the powerful, yet easy to use graphical user interface of MPLAB integrated development environment (IDE). MPLAB ICD-3 in-circuit debugger provides significant performance enhancements for embedded systems designers. Programming times are typically 15x faster than previous systems. A 40MHz dsPIC33 and high-speed FPGA yield faster communications, downloads and debugging. MPLAB ICD-3 in-circuit debugger/programmer supports most flash PIC MCUs and dsPIC DSCs.

• Real-time debugging
• Ruggedized probe interface
• Microchip standard connectivity of RJ-11
• High speed programming
• Low voltage emulation
• Test interface module is included with every MPLAB ICD-3
• Portable, USB-powered and RoHS compliant
• Ease of maintenance and feature upgrade
• Low cost and powerful debugging

Applications

Embedded Design & Development

Contents

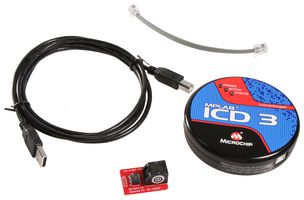

MPLAB ICD-3, USB cable, Cable to connect the MPLAB ICD-3 to a header module or target board, ICD 3 test interface board, MPLAB IDE quick start guide.
