                      EV26C77A

                      EVAL BOARD, 32BIT, ARM CORTEX-A5

                      MICROCHIP EV26C77A

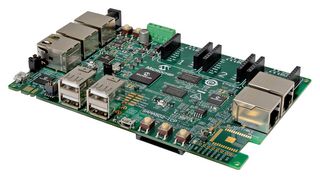

                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerMICROCHIP
                      Manufacturer Part NoEV26C77A
                      Newark Part No.71AH3616
                      See all Technical Docs
                      1 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      Available in quantity shown. To order more than shown inventory, contact sales
                      QuantityPrice
                      1+$194.610
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $194.61
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerMICROCHIP
                      Manufacturer Part NoEV26C77A
                      Newark Part No.71AH3616
                      Silicon ManufacturerMicrochip
                      No. of Bits32bit
                      Silicon Family NameSAMA5D2
                      Core ArchitectureARM
                      Core Sub-ArchitectureCortex-A5
                      Silicon Core NumberATSAMA5D2-ICP
                      Kit ContentsEval Board ATSAMA5D2-ICP, USB-A to USB Micro-Cable
                      Product Range-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      ATSAMA5D2-ICP industrial connectivity platform is ideal for evaluating and prototyping with high performance, ultra-low power SAMA5D27 Cortex-A5 based microprocessor (MPU) running up to 500MHz. The SAMA5D27 features powerful peripherals for connectivity and user interface applications and offers advanced security functions. The SAMA5D2-ICP is a hardware and software platform that demonstrates the rich wired and wireless connectivity solutions for Microchip SAMA5D2 Arm® Cortex®-A based microprocessors. It offers customers a starting point for their applications that include either EtherCAT, Ethernet 10/100 and 10/100/1000, CAN, Wi-Fi®, Bluetooth® or USB communications or any combination of these. Connectors and expansion headers allows for easy customization and quick access to leading edge embedded features such as Mikroelektronica click boards. The kit includes an on-board embedded debugger, eliminating the need for external tools to program or debug.

                      • Two winbond W632GU6MB 2Gb DDR3L SDRAM
                      • SST26VF064B 64Mb QSPI flash, user RGB LED
                      • Three 24AA025E48 EEPROM
                      • Footprint for ATWILC3000-MR110CA WI-FI/BLE module (not mounted by default)
                      • LAN9252I/ML EtherCAT, two EtherCAT-P female connectors
                      • LAN7850T-I/8JX USB HSIC to Gbit Ethernet bridge (1 x RJ45 connector)
                      • KSZ8563RNXI 3-port Ethernet switch (2 x RJ45 connectors)
                      • USB2534 4-port USB hub, two user buttons, reset button, disable boot button, wake-up button
                      • Microchip MCP16502 power management IC, Microchip PAC1934 power monitor IC
                      • 1 x SD card connector, 3 x miKroBus connectors, support for ECC608, RS485

                      Contents

                      ATSAMA5D2-ICP board, USB-A to USB micro-B cable.

                      Technical Specifications

                      Silicon Manufacturer

                      Microchip

                      Silicon Family Name

                      SAMA5D2

                      Core Sub-Architecture

                      Cortex-A5

                      Kit Contents

                      Eval Board ATSAMA5D2-ICP, USB-A to USB Micro-Cable

                      SVHC

                      No SVHC (21-Jan-2025)

                      No. of Bits

                      32bit

                      Core Architecture

                      ARM

                      Silicon Core Number

                      ATSAMA5D2-ICP

                      Product Range

                      -

                      Technical Docs (1)

                      Operating Instructions EN

                      Legislation and Environmental

                      US ECCN:5A992C
                      EU ECCN:Unknown
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate
