PIC16F88-I/P
8 Bit MCU, Flash, PIC16 Family PIC16F8x Series Microcontrollers, PIC16, 20 MHz, 7 KB, 18 Pins, DIP

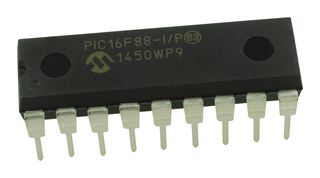

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMICROCHIP
Manufacturer Part NoPIC16F88-I/P
Newark Part No.54K2830
Product RangePIC16 Family PIC16F8x Series Microcontrollers
Technical Datasheet
5,979 In Stock
Need more?
980 Delivery in 1-3 Business Days(US stock)
4999 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $4.640 |
Price for:Each
Minimum: 1
Multiple: 1
$4.64
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMICROCHIP
Manufacturer Part NoPIC16F88-I/P
Newark Part No.54K2830
Product RangePIC16 Family PIC16F8x Series Microcontrollers
Technical Datasheet
Base NumberPIC16F
Product RangePIC16 Family PIC16F8x Series Microcontrollers
CPU Speed20MHz
Device CorePIC16
Operating Frequency Max20MHz
Program Memory Size7KB
No. of Pins18Pins
IC Case / PackageDIP
MCU Case StyleDIP
No. of I/O's16I/O's
Embedded Interface TypeI2C, SPI, USART
InterfacesI2C, SPI, USART
RAM Memory Size368Byte
ADC Channels7Channels
ADC Resolution10Bit
MCU FamilyPIC16
MCU SeriesPIC16F8xx
Supply Voltage Min4V
Supply Voltage Max5.5V
Operating Temperature Min-40°C
Operating Temperature Max85°C
IC MountingThrough Hole
Qualification-
MSL-
SVHCNo SVHC (21-Jan-2025)
Product Overview
- Enhanced flash microcontroller with nanoWatt Technology
- Timer1 oscillator: 1.8μA, 32KHz, 2V
- Watchdog Timer: 2.2μA, 2V
- Two speed oscillator start up
- Three crystal modes
- Two external RC modes
- One external clock mode
- ECIO: up to 20MHz
- 8 user selectable frequencies
- Capture, compare, PWM (CCP) module
- 10 bit, 7 channel analog to digital converter
- Synchronous Serial Port (SSP) with SPI and I2C
- Addressable universal synchronous asynchronous receiver transmitter with 9 bit address detection
- Dual analog comparator module
- Programmable on chip voltage reference
- Programmable input multiplexing from device
- Inputs and internal voltage reference
- Comparator outputs are externally accessible
- 100,000 erase/write cycles enhanced flash program memory
- 1,000,000 typical erase/write cycles EEPROM data memory
- EEPROM data retention: 40 years
- In circuit serial programming
- Processor read/write access to program memory
- Low voltage programming
- In circuit debugging via two pins
Technical Specifications
Base Number
PIC16F
CPU Speed
20MHz
Operating Frequency Max
20MHz
No. of Pins
18Pins
MCU Case Style
DIP
Embedded Interface Type
I2C, SPI, USART
RAM Memory Size
368Byte
ADC Resolution
10Bit
MCU Series
PIC16F8xx
Supply Voltage Max
5.5V
Operating Temperature Max
85°C
Qualification
-
SVHC
No SVHC (21-Jan-2025)
Product Range
PIC16 Family PIC16F8x Series Microcontrollers
Device Core
PIC16
Program Memory Size
7KB
IC Case / Package
DIP
No. of I/O's
16I/O's
Interfaces
I2C, SPI, USART
ADC Channels
7Channels
MCU Family
PIC16
Supply Voltage Min
4V
Operating Temperature Min
-40°C
IC Mounting
Through Hole
MSL
-
