RN-52-EK

RN-52-EK is an evaluation kit for the RN52, a fully certified Bluetooth version 3.0 audio module, and fully compatible with Bluetooth version 2.1 + EDR. It integrates RF, a baseband controller, and DSP, making it a complete Bluetooth audio wireless link. The RN52 supports HSP/HFP, A2DP, AVRCP, SPP, and iAP profiles and includes support for codecs such as SBC, aptX, and AAC. It provides a UART interface, GPIO, stereo speaker outputs, stereo microphone inputs, and a USB port. Board demonstrates the key features of the RN52 allowing designers to quickly and easily evaluate and develop prototypes.

• Based on RN52 Bluetooth audio module
• Demonstrates key features of RN52 module for embedded systems
• Allows designers to develop prototypes and proof of concept
• Dual channel audio output and input available in analog and digital formats
• Provides interface to external devices
• USB port to supply power and access to command interface
• Built in amplifier for stereo audio output and 6 function buttons

Applications

Wireless, Audio, RF Communications

Contents

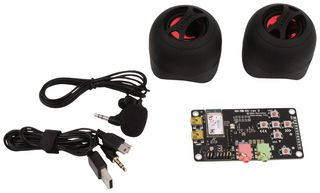

Board, Cable, Two stereo mini speakers, Microphone.
