MTA18ASF2G72PDZ-3G2R1

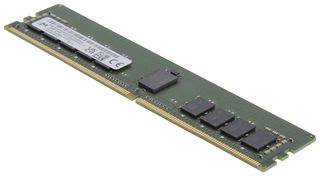

MTA18ASF2G72PDZ-3G2R1 is a DDR4 SDRAM memory module with a capacity of 16GB. It is designed for use in servers and high-performance computing environments, providing reliable and efficient memory performance.

• 2Gig × 72 configuration, 25.6GB/s module bandwidth
• 0.625ns/3200 MT/s memory clock/data rate and 22-22-22 clock cycles (CL-nRCD-nRP)
• Supports ECC error detection and correction, Low-power auto self refresh (LPASR)
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Data bus inversion (DBI) for data bus and on-die VREFDQ generation and calibration
• On-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM
• 16 internal banks, 4 groups of 4 banks each and selectable BC4 or BL8 on-the-fly (OTF)
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Gold edge contacts and fly-by topology
• Terminated control, command, and address bus
