MD240128A6W-FPTLW
Graphic LCD, 240 x 128 Pixels, Black on White, 3.3V, Parallel, SPI, Transflective

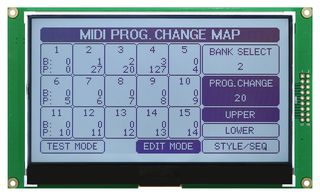

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMD240128A6W-FPTLW
Newark Part No.84AH6494
Product RangeMD240128A
Technical Datasheet
22 In Stock
Need more?
1 Delivery in 1-3 Business Days(US stock)
21 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $48.060 |
| 5+ | $48.060 |
| 10+ | $48.060 |
| 36+ | $48.060 |
| 60+ | $48.060 |
| 108+ | $48.060 |
Price for:Each
Minimum: 1
Multiple: 1
$48.06
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMD240128A6W-FPTLW
Newark Part No.84AH6494
Product RangeMD240128A
Technical Datasheet
Resolution240 x 128 Pixels
Display AppearanceBlack on White
Logic Voltage3.3V
Font Set-
Display ModeTransflective
LCD Display TypeFSTN
Module Size140mm x 84mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourWhite
Product RangeMD240128A
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Graphic LCD (Liquid Crystal Display) with 240x128 pixels
- FSTN transflective
- White LED backlight
- Black characters on a white background appearance
- Multi interface
- ST7586S controller, 3.3V driving voltage
- 18 DIL right connection, 0.43mm x 0.43mm pixel size
- Operating temperature range from -20°C to +70°C
- Chip on glass on PCB construction
- 140.00 x 84.00 x 9.70mm overall size, 114.00 x 64.00mm viewing area
Technical Specifications
Resolution
240 x 128 Pixels
Logic Voltage
3.3V
Display Mode
Transflective
Module Size
140mm x 84mm
Operating Temperature Max
70°C
Backlighting Colour
White
SVHC
No SVHC (27-Jun-2024)
Display Appearance
Black on White
Font Set
-
LCD Display Type
FSTN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
MD240128A
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
