MDOB256064D1Y-YS
Graphic OLED, 256 x 64 Pixels, Yellow on Black, 3.3V, SPI, -40 °C

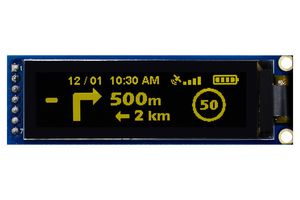

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOB256064D1Y-YS
Newark Part No.69AH1029
Technical Datasheet
3 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $10.750 |
| 5+ | $10.750 |
| 10+ | $10.750 |
| 25+ | $10.750 |
| 50+ | $10.750 |
| 100+ | $10.750 |
| 250+ | $10.750 |
Price for:Each
Minimum: 1
Multiple: 1
$10.75
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOB256064D1Y-YS
Newark Part No.69AH1029
Technical Datasheet
Resolution256 x 64 Pixels
Display AppearanceYellow on Black
Logic Voltage3.3V
Module Size70mm x 22mm
Operating Temperature Min-40°C
Operating Temperature Max80°C
Display ConstructionCOB
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Module dimension: 70x22x1.71mm
- Active area: 51.18x12.78mm
- Dot Matrix: 256x64
- Pixel Size: 0.18 x 0.18 mm
- Pixel Pitch: 0.20x0.20mm
- Display Mode: Passive Matrix
- 1/64 Duty
- Grey Scale: 4 Bits
- Display Colour: Yellow
- IC: SSD1362
- Interface: SPI
- Size: 2.08"
Technical Specifications
Resolution
256 x 64 Pixels
Logic Voltage
3.3V
Operating Temperature Min
-40°C
Display Construction
COB
SVHC
No SVHC (27-Jun-2024)
Display Appearance
Yellow on Black
Module Size
70mm x 22mm
Operating Temperature Max
80°C
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
