MDT0520COH-HDMI
TFT LCD, 5.2 ", 480 x 128 Pixels, Landscape, RGB, 5V

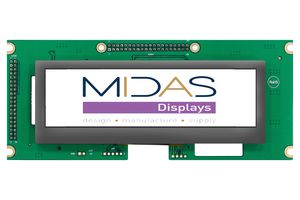

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDT0520COH-HDMI
Newark Part No.21AH3322
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 23 week(s)
| Quantity | Price |
|---|---|
| 1+ | $116.150 |
| 5+ | $113.040 |
| 10+ | $109.790 |
| 25+ | $108.160 |
| 50+ | $106.580 |
| 100+ | $100.180 |
Price for:Each
Minimum: 1
Multiple: 1
$116.15
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDT0520COH-HDMI
Newark Part No.21AH3322
Technical Datasheet
Display Size5.2"
Resolution480 x 128 Pixels
VGA Size-
Display OrientationLandscape
Display AppearanceRGB
Logic Voltage5V
Display Brightness850cd/m²
TouchscreenNo Touchscreen
Module Size180mm x 75.8mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display Pinout40 Way Connector
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
MDT0520COH-HDMI is a 5.2” TN transmissive type colour active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT-LCD module and it is usually designed for industrial application. Compatible with single board computers, such as Raspberry-Pi.
- HDMI interface
- 480 x 128 resolution
- LED backlight
- 850cd/m2 brightness
- All round viewing angles
- -20 to +70 degrees wide temperature range
- HDMI connector
- 180.00mm x 75.80mm x 22.00mm panel size, 127.15mm x 33.90mm viewing area
Technical Specifications
Display Size
5.2"
VGA Size
-
Display Appearance
RGB
Display Brightness
850cd/m²
Module Size
180mm x 75.8mm
Operating Temperature Max
70°C
Product Range
-
Resolution
480 x 128 Pixels
Display Orientation
Landscape
Logic Voltage
5V
Touchscreen
No Touchscreen
Operating Temperature Min
-20°C
Display Pinout
40 Way Connector
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
