0305-0-15-15-47-27-10-0
IC & Component Socket, 1 Contacts, PCB Socket, 0305 Series, Beryllium Copper

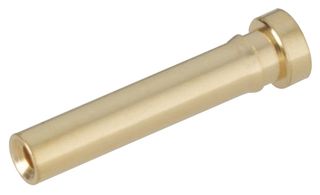

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMILL-MAX
Manufacturer Part No0305-0-15-15-47-27-10-0
Newark Part No.27C5734
Product Range0305 Series
Technical Datasheet
1,700 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.829 |
| 10+ | $0.775 |
| 25+ | $0.698 |
| 50+ | $0.618 |
| 100+ | $0.593 |
| 250+ | $0.541 |
| 500+ | $0.515 |
| 1000+ | $0.426 |
Price for:Each
Minimum: 1
Multiple: 1
$0.83
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMILL-MAX
Manufacturer Part No0305-0-15-15-47-27-10-0
Newark Part No.27C5734
Product Range0305 Series
Technical Datasheet
No. of Contacts1Contacts
Connector TypePCB Socket
Pitch Spacing-
Product Range0305 Series
Row Pitch-
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
SVHCTo Be Advised
Product Overview
The 0305-0-15-15-47-27-10-0 is a solder-mount Receptacle with a no tail accepts 0.025 to 0.037-inch diameter leads. It has 10μ-inch gold over nickel-plated shell and 30μ-inch gold over nickel-plated contacts.
- 4.5A Current rating
- 1000 Cycles minimum mechanical life
- 10mΩ Maximum resistance
- -55 to 125°C Operating temperature range
- #47, Standard 4-finger contact
Applications
Industrial
Technical Specifications
No. of Contacts
1Contacts
Pitch Spacing
-
Row Pitch
-
Contact Plating
Gold Plated Contacts
Connector Type
PCB Socket
Product Range
0305 Series
Contact Material
Beryllium Copper
SVHC
To Be Advised
