0858-0-15-20-82-14-11-0
Contact, Spring Loaded Pin, Point, 9 A, 12.78 mm, 25 g

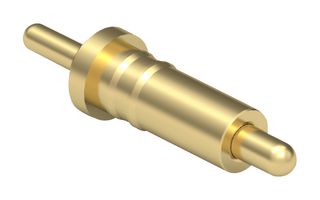

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMILL-MAX
Manufacturer Part No0858-0-15-20-82-14-11-0
Newark Part No.65AC5397
Product Range0858 Series
Your Part Number
Technical Datasheet
5,510 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.380 |
| 10+ | $2.960 |
| 25+ | $2.780 |
| 50+ | $2.670 |
| 100+ | $2.560 |
| 250+ | $2.330 |
| 500+ | $2.090 |
| 1000+ | $1.870 |
Price for:Each
Minimum: 1
Multiple: 1
$3.38
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMILL-MAX
Manufacturer Part No0858-0-15-20-82-14-11-0
Newark Part No.65AC5397
Product Range0858 Series
Technical Datasheet
Connector TypeSpring Loaded Pin
Centerline Spacing-
Connector Tip StylePoint
Current Rating9A
Overall Length12.78mm
Spring Force Initial25g
Spring Force Working Travel120g
Product Range0858 Series
SVHCTo Be Advised
Product Overview
- Solder mount 0.045" minimum mounting hole power spring pin
- 100,000 to 1,000,000 cycles of durability
- Copper alloy sleeve and plunger with 20µ" gold over nickel finish
- 10µ" gold over nickel spring plating
- Stainless steel 302 spring
Technical Specifications
Connector Type
Spring Loaded Pin
Connector Tip Style
Point
Overall Length
12.78mm
Spring Force Working Travel
120g
SVHC
To Be Advised
Centerline Spacing
-
Current Rating
9A
Spring Force Initial
25g
Product Range
0858 Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
