09-50-8131

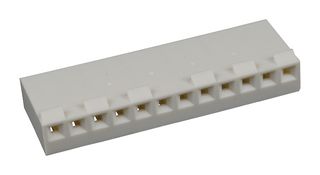

Connector Housing, KK 396 41695, Receptacle, 13 Positions, 3.96 mm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No09-50-8131
Newark Part No.54H6926
Product RangeKK 396 41695
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 13 week(s)
| Quantity | Price |
|---|---|
| 1000+ | $0.517 |
Price for:Each
Minimum: 12000
Multiple: 1500
$6,204.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No09-50-8131
Newark Part No.54H6926
Product RangeKK 396 41695
Technical Datasheet
Product RangeKK 396 41695
No. of Positions13Positions
Pitch Spacing3.96mm
For Use With797582145, 797582146 Crimp Terminals
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 09-50-8131 is a 13-way 1-row KK® 3.96mm female crimp terminal housing made of polyester with friction ramp.
Technical Specifications
Product Range
KK 396 41695
Gender
Receptacle
For Use With
797582145, 797582146 Crimp Terminals
No. of Positions
13Positions
Pitch Spacing
3.96mm
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
