172512-3412

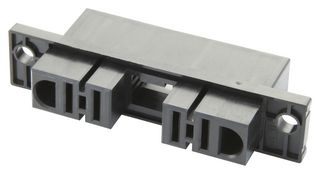

Heavy Duty Connector Base, 12Signal+4Power, EXTreme Ten60Power 172512 Series, Panel Mount
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No172512-3412
Newark Part No.11AC9776
Product RangeEXTreme Ten60Power 172512 Series
Also Known AsGTIN UPC EAN: 889056027694
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 7 week(s)
| Quantity | Price |
|---|---|
| 50+ | $7.760 |
| 100+ | $7.650 |
| 250+ | $7.380 |
Price for:Each
Minimum: 63
Multiple: 63
$488.88
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No172512-3412
Newark Part No.11AC9776
Product RangeEXTreme Ten60Power 172512 Series
Also Known AsGTIN UPC EAN: 889056027694
Technical Datasheet
Product RangeEXTreme Ten60Power 172512 Series
Connector MountingPanel Mount
Rectangular Shell Size-
For Use WithMolex EXTreme Ten60Power 44262 & 70058 Series Socket Contacts
Connector Body MaterialPBT (Polybutylene Terephthalate) Body
Locking Type-
SVHCNo SVHC (21-Jan-2025)
Product Overview
EXTreme Ten60Power high-current connector designed for board-to-board, wire-to-board and panel-to-board applications. EXTreme Ten60Power hybrid power-and-signal solutions provide up to 260A per linear inch, fast response times and easy-to-configure modules.
- Low-profile design of 10mm height
- Rated for resistance to arcing in hot-pluggable applications
- 8 to 16AWG power receptacle terminals and 22 to 28AWG signal receptacle terminals
- Power-only and hybrid power-and-signal configurations
Applications
Communications & Networking, Consumer Electronics
Technical Specifications
Product Range
EXTreme Ten60Power 172512 Series
Rectangular Shell Size
-
Connector Body Material
PBT (Polybutylene Terephthalate) Body
SVHC
No SVHC (21-Jan-2025)
Connector Mounting
Panel Mount
For Use With
Molex EXTreme Ten60Power 44262 & 70058 Series Socket Contacts
Locking Type
-
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
