Print Page
172704-0003
D Sub Connector, DB25, 25 Contacts, Plug, Crimp, DB, 172704 Series, Steel Body

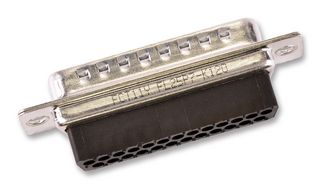

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No172704-0003
Newark Part No.78X4967
Product Range172704 Series
Also Known AsFL25P7-K120
Technical Datasheet
194 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $5.230 |
| 10+ | $4.780 |
| 25+ | $4.530 |
| 50+ | $4.430 |
| 100+ | $4.220 |
| 250+ | $3.700 |
| 500+ | $3.610 |
| 1000+ | $3.090 |
Price for:Each
Minimum: 1
Multiple: 1
$5.23
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No172704-0003
Newark Part No.78X4967
Product Range172704 Series
Also Known AsFL25P7-K120
Technical Datasheet
No. of Positions25Positions
Connector Shell SizeDB
Product Range172704 Series
No. of Contacts25Contacts
D Sub Shell SizeDB
Contact Termination TypeCrimp
For Use WithMolex 173112 Series 20-24AWG FCT Machined Crimp Pin Contacts
Contact Material-
Contact Plating-
Connector Body MaterialSteel Body
SVHCNo SVHC (21-Jan-2025)
Product Overview
The FL series tin plated, steel shell D-sub crimp connectors with PBT front part insulator and PEI rear part insulator.
- Number of contacts 09, 15, 25 or 37
Technical Specifications
No. of Positions
25Positions
Connector Shell Size
DB
No. of Contacts
25Contacts
Contact Termination Type
Crimp
Contact Material
-
Connector Body Material
Steel Body
Gender
Plug
Product Range
172704 Series
D Sub Shell Size
DB
For Use With
Molex 173112 Series 20-24AWG FCT Machined Crimp Pin Contacts
Contact Plating
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
