19006-0001
Quick Disconnect Terminal, Avikrimp 19006 Series, Female Quick Disconnect, 6.35mm x 0.81mm
8,000 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | $0.709 |
| 10+ | $0.523 |
| 25+ | $0.509 |
| 50+ | $0.501 |
| 100+ | $0.501 |
| 250+ | $0.499 |
| 500+ | $0.499 |
| 1000+ | $0.499 |
Product Information
Product Overview

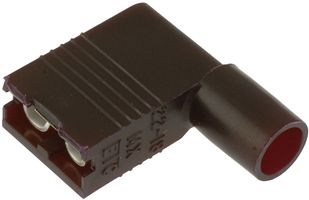

The 19006-0001 is an Avikrimp™ female Flag Quick Disconnect made of brass with tin plated finish for 22 to 18AWG wire. This 190006 series fully insulated quick disconnect comes with nylon (PA) insulation and closed barrel. Flags are used when there is a space constraint and a regular straight quick disconnect is too large. Providing fast and reliable connection and disconnection of two wires, fully-insulated quick-disconnect terminals are available in a variety of options to meet industry requirements.
- Glow-wire compliant
- Accommodates multiple standard tab sizes
- Provides flexibility for a wide variety of applications
- Provides space-savings designs
- Ensures optimum safety from electric shock
- UL94V-2 Flammability rating
- 600V Maximum voltage
- -65 to +105°C Operating temperature range
Applications
Automotive, Consumer Electronics, Industrial, HVAC
Technical Specifications
Avikrimp 19006 Series
6.35mm x 0.81mm
22AWG
Red
Nylon (Polyamide)
No SVHC (25-Jun-2025)
Female Quick Disconnect
0.25" x 0.032"
18AWG
0.8mm²
Brass
Associated Products
2 Products Found
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
