19221-0424
Lug Terminal, 19221 Series, Crimp, 6 AWG, 16 mm², Compression Lug, M5
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No19221-0424
Newark Part No.58R9374
Product Range19221 Series
Also Known AsBCL-610-PL, GTIN UPC EAN: 800753065086
Technical Datasheet
1,118 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.670 |
| 10+ | $1.490 |
| 25+ | $1.450 |
| 50+ | $1.390 |
| 100+ | $1.340 |
| 250+ | $1.250 |
| 500+ | $1.150 |
| 1000+ | $1.040 |
Price for:Each
Minimum: 1
Multiple: 1
$1.67
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No19221-0424
Newark Part No.58R9374
Product Range19221 Series
Also Known AsBCL-610-PL, GTIN UPC EAN: 800753065086
Technical Datasheet
Product Range19221 Series
TerminationCrimp
Wire Size AWG Max6AWG
Conductor Area CSA16mm²
Terminal TypeCompression Lug
Stud Size - MetricM5
Stud Size - Imperial#10
Stud Size - Imperial10
InsulationNon Insulated
SVHCNo SVHC (21-Jan-2025)
Product Overview

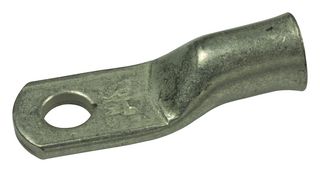

The 19221-0424 is a Ring Tongue Terminal made of copper with tin plated finish. The 19221 series compression style heavy duty uninsulated terminal comes with a closed barrel and accepts 6AWG wire. The Molex battery cable lug offers seamless performance connecting cables, electrical appliances and other power mechanisms, for harsh-duty environments. Since it is made of copper it offers 100% conductivity.
- Seamless barrel design - No special orientation in crimp tool required
- Flared barrel entry - Ensures easy wire insertion
Applications
Industrial, Commercial, Automotive
Technical Specifications
Product Range
19221 Series
Wire Size AWG Max
6AWG
Terminal Type
Compression Lug
Stud Size - Imperial
#10
Insulation
Non Insulated
Termination
Crimp
Conductor Area CSA
16mm²
Stud Size - Metric
M5
Stud Size - Imperial
10
SVHC
No SVHC (21-Jan-2025)
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
