22-28-4020

Pin Header, Signal, 2.54 mm, 1 Rows, 2 Contacts, Through Hole Straight, KK 254 42375 Series

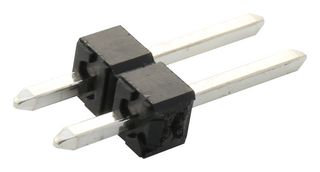

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
22-28-4020
Newark Part No.:
91C4627
Product Range
KK 254 42375 Series
Also Known As:
42375-0002, GTIN UPC EAN: 800753688889
Technical Datasheet:
22-28-4020   Datasheet
See all Technical Docs

Product Range Selector (KK 254 42375 Series)

See all from this product range

Product Overview

The 22-28-4020 is a 2-way 1-row vertical KK® 254 Board-to-board breakaway header with tin-plated brass contacts. This 42375 series PCB header comes with a high temperature thermoplastic resin housing and through hole termination. It mates with 2695, 6471, 7880 KK® crimp housings and 4455 KK® PC board connector. Additionally, customizable KK headers allow for more polarization options and design configurations, which make the KK® connector system ideal for a variety of industries. The header is suitable for board-to-board, signal and wire-to-board applications.
  • Black colour
  • UL94V-0 flammability rating
  • 6.09mm mating pin length
  • Surface mount compatible (SMC)
  • Maximum current per contact is 4A
  • Maximum voltage is 250V
  • Maximum durability of 25 mating cycles

Applications

Automotive, Communications & Networking, Consumer Electronics, Medical

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Signal

:
2.54mm

:
1Rows

:
2Contacts

:
Through Hole Straight

:
KK 254 42375 Series

:
Unshrouded

:
Brass

:
Tin Plated Contacts

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (9)

Also Known As

42375-0002, GTIN UPC EAN: 800753688889
