38720-6206

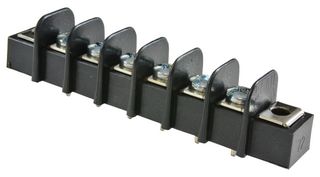

PCB Mount Barrier Terminal Block, 9.53 mm, 1 Row, 6 Positions, 22 AWG, 14 AWG, 15 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No38720-6206
Newark Part No.72K2044
Product RangeBeau 38720 Series
Also Known As72506, GTIN UPC EAN: 800756332710
Technical Datasheet
No Longer Available
Product Information
ManufacturerMOLEX
Manufacturer Part No38720-6206
Newark Part No.72K2044
Product RangeBeau 38720 Series
Also Known As72506, GTIN UPC EAN: 800756332710
Technical Datasheet
Pitch Spacing9.53mm
No. of Rows1 Row
No. of Positions6Positions
Wire Size AWG Min22AWG
Wire Size AWG Max14AWG
Rated Current15A
Rated Voltage300V
Product RangeBeau 38720 Series
SVHCTo Be Advised
Product Overview
The 38720-6206 is a 6-way 1-row 9.53mm pitch Beau™ PCB Terminal Strip with tin-plated brass contacts. The 38720 series terminal block comes with black polyester resin. Beau™ barrier strips improve interconnect performance. It accepts bare or terminated wires, with no special tools required for installation.
- Quick and easy field termination
- Design flexibility
- Robust and durable - Ideal for multiple terminations
- Presents a finished, professional look
- Dual barrier shrouded
- -40 to 130°C Operating temperature range
Applications
Consumer Electronics, Industrial, Automation & Process Control, Security, HVAC
Technical Specifications
Pitch Spacing
9.53mm
No. of Positions
6Positions
Wire Size AWG Max
14AWG
Rated Voltage
300V
SVHC
To Be Advised
No. of Rows
1 Row
Wire Size AWG Min
22AWG
Rated Current
15A
Product Range
Beau 38720 Series
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
