39357-0008
Wire-To-Board Terminal Block, Eurostyle, 3.5 mm, 8 Positions, 28 AWG, 16 AWG, 1 mm², Screw

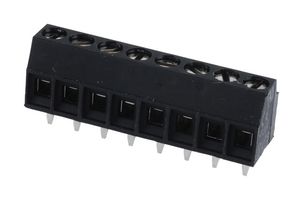

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No39357-0008
Newark Part No.58H9415
Product RangeEurostyle 39357 Series
Also Known AsMX-MTB08008-0N, GTIN UPC EAN: 756054634189
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerMOLEX
Manufacturer Part No39357-0008
Newark Part No.58H9415
Product RangeEurostyle 39357 Series
Also Known AsMX-MTB08008-0N, GTIN UPC EAN: 756054634189
Technical Datasheet
Pitch Spacing3.5mm
No. of Positions8Positions
Wire Size AWG Min28AWG
Wire Size AWG Max16AWG
Conductor Area CSA1mm²
Wire Connection MethodScrew
Rated Current17.5A
Rated Voltage300V
Block OrientationThrough Hole Right Angle
Product RangeEurostyle 39357 Series
SVHCLead
Product Overview
The 39357-0008 is a 8-circuit 17.5A Beau Eurostyle™ fixed-mount wire-to-board Terminal Block with through-hole right-angle block orientation and screw wire connection.
- UL94V-0 Flammability rating
- -30 to 85°C Operating temperature range
Applications
Industrial
Technical Specifications
Pitch Spacing
3.5mm
Wire Size AWG Min
28AWG
Conductor Area CSA
1mm²
Rated Current
17.5A
Block Orientation
Through Hole Right Angle
SVHC
Lead
No. of Positions
8Positions
Wire Size AWG Max
16AWG
Wire Connection Method
Screw
Rated Voltage
300V
Product Range
Eurostyle 39357 Series
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
