FFC / FPC Board Connector, 0.5 mm, 30 Contacts, Receptacle, Easy-On 501864 Series, Surface Mount

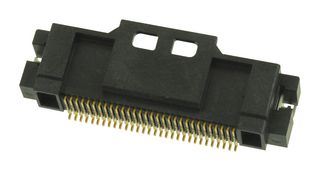

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No501864-3091
Newark Part No.03AH4106
Product RangeEasy-On 501864
Your Part Number
Technical Datasheet
2,110 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
Packaging Options
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | $4.300 |
| 10+ | $3.800 |
| 25+ | $3.590 |
| 50+ | $3.480 |
| 100+ | $3.300 |
| 250+ | $3.230 |
| 500+ | $3.170 |
| 1000+ | $2.950 |
Full Reel
| Quantity | Price |
|---|---|
| 900+ | $2.900 |
| 1800+ | $2.840 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No501864-3091
Newark Part No.03AH4106
Product RangeEasy-On 501864
Technical Datasheet
Pitch Spacing0.5mm
No. of Contacts30Contacts
Product RangeEasy-On 501864
Contact Termination TypeSurface Mount Right Angle
Contact PositionBottom
No. of Rows1 Row
Contact PlatingGold Plated Contacts
Contact MaterialPhosphor Bronze
FFC / FPC Thickness0.3mm
SVHCNo SVHC (25-Jun-2025)
Product Overview
501864-3091 is a 0.50mm pitch, 30 circuits, right angle easy-on FFC/FPC-to-board connector with grounding terminals.
- Receptacle housing assembly
- 0.5A current - maximum per contact, 50V maximum voltage
- Phosphor bronze with gold plating contact
- Liquid crystal polymer resin
- Operating temperature range from -40° to +105°C
Technical Specifications
Pitch Spacing
0.5mm
Gender
Receptacle
Contact Termination Type
Surface Mount Right Angle
No. of Rows
1 Row
Contact Material
Phosphor Bronze
SVHC
No SVHC (25-Jun-2025)
No. of Contacts
30Contacts
Product Range
Easy-On 501864
Contact Position
Bottom
Contact Plating
Gold Plated Contacts
FFC / FPC Thickness
0.3mm
