FFC / FPC Board Connector, 0.2 mm, 39 Contacts, Receptacle, Easy-On 504070 Series, Surface Mount

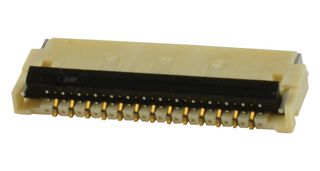

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No504070-3991
Newark Part No.42X1963
Product RangeEasy-On 504070 Series
Also Known AsGTIN UPC EAN: 884982774322
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price |
|---|---|
| 1+ | $4.130 |
Price for:Each (Supplied on Cut Tape)
Minimum: 18000
Multiple: 18000
$74,340.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No504070-3991
Newark Part No.42X1963
Product RangeEasy-On 504070 Series
Also Known AsGTIN UPC EAN: 884982774322
Technical Datasheet
Pitch Spacing0.2mm
No. of Contacts39Contacts
Product RangeEasy-On 504070 Series
Contact Termination TypeSurface Mount
Contact PositionTop, Bottom
No. of Rows1 Row
Contact MaterialPhosphor Bronze
FFC / FPC Thickness0.2mm
SVHCNo SVHC (08-Jul-2021)
Product Overview
Easy-On FFC FPC Connectors are ideal for tight-packaging applications. They feature positive lock and dual-contact design that ensures reliable connection. Additionally, a wide variety of actuator options including ZIF, slider and flip help to establish a secure connection between the FFC/FPC connectors and terminals.
- Movable terminals ensure more secure contact retention
- Actuators reinforcements for large circuit sizes
- Various cable tab and actuator locking styles
- Accepts standard or shielded FFC connectors
- Grounding terminals accommodate high-speed, high-frequency signal requirements such as LVDS
- Multiple polarizing keys
- Positive inertia lock
Applications
Automotive, Consumer Electronics, Industrial, Medical, Data / Computing
Technical Specifications
Pitch Spacing
0.2mm
Gender
Receptacle
Contact Termination Type
Surface Mount
No. of Rows
1 Row
FFC / FPC Thickness
0.2mm
No. of Contacts
39Contacts
Product Range
Easy-On 504070 Series
Contact Position
Top, Bottom
Contact Material
Phosphor Bronze
SVHC
No SVHC (08-Jul-2021)
