BU-115-0

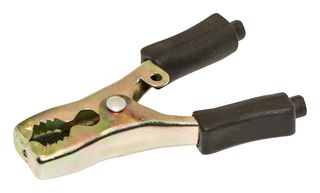

Mini Battery Clip, 13 mm, 40 A, Black
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
| Quantity | Price |
|---|---|
| 500+ | $1.690 |
| 1000+ | $1.560 |
| 2500+ | $1.420 |
Price for:Each
Minimum: 834
Multiple: 1
$1,409.46
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMUELLER ELECTRIC
Manufacturer Part NoBU-115-0
Newark Part No.48Y8368
Technical Datasheet
Connector TypeMini Battery Clip
Current Rating40A
Jaw Opening Max13mm
Insulator ColourBlack
Product Range-
Product Overview
The BU-115-0 from Mueller Electric is an economy miniature battery clip with insulator.
- Dimension: 3.0"(76 mm) length, 0.5"(13mm) width and 1.7"(43mm) height
- 0.5" (13mm) max jaw opens
- Can be used with wire up to 12AWG (crimped or soldered)
- Rugged steel construction
- Dichromate plated steel clip
- Zinc plated music wire spring
- Moulded PVC insulators
- 40A current rating
- Available in black colour
Technical Specifications
Connector Type
Mini Battery Clip
Jaw Opening Max
13mm
Product Range
-
Current Rating
40A
Insulator Colour
Black
SVHC
No SVHC (19-Jan-2021)
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (19-Jan-2021)
