MP000293

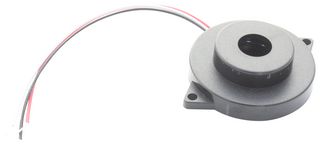

PIEZO TRANSDUCER, 3.2KHZ, 110DB
Image is for illustrative purposes only. Please refer to product description.
108 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $8.010 |
| 100+ | $6.730 |
| 250+ | $6.250 |
| 500+ | $5.880 |
| 1000+ | $5.580 |
Price for:Each
Minimum: 1
Multiple: 1
$8.01
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP000293
Newark Part No.07AH4316
Technical Datasheet
Transducer FunctionBuzzer
Supply Voltage Min6VDC
TonesSingle
Sound Pressure Level (SPL)110dB
Resonant Frequency3.2kHz
Supply Voltage Max12VDC
Operating Current Max30mA
Transducer MountingPanel Mount
Drive Circuit-
Sound Level Distance0
Capacitance-
Sound Level Distance100mm
Lead Wire28AWG
IP Rating-
IP Rating-
Housing MaterialABS (Acrylonitrile Butadiene Styrene)
Operating Voltage Range6VDC to 12VDC
Operating Temperature Min-20°C
Operating Temperature Max70°C
Product Range-
SVHCLead titanium zirconium oxide (21-Jan-2025)
Technical Specifications
Transducer Function
Buzzer
Tones
Single
Resonant Frequency
3.2kHz
Operating Current Max
30mA
Drive Circuit
-
Capacitance
-
Lead Wire
28AWG
IP Rating
-
Operating Voltage Range
6VDC to 12VDC
Operating Temperature Max
70°C
SVHC
Lead titanium zirconium oxide (21-Jan-2025)
Supply Voltage Min
6VDC
Sound Pressure Level (SPL)
110dB
Supply Voltage Max
12VDC
Transducer Mounting
Panel Mount
Sound Level Distance
0
Sound Level Distance
100mm
IP Rating
-
Housing Material
ABS (Acrylonitrile Butadiene Styrene)
Operating Temperature Min
-20°C
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead titanium zirconium oxide (21-Jan-2025)
