MP005987

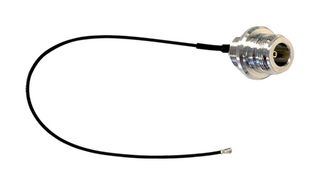

RF / Coaxial Cable Assembly, 20 ", 200 mm, U.FL Right Angle Plug, N Type Bulkhead Jack
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP005987
Newark Part No.12AJ7212
Product RangeMiniature Coaxial Cable Assemblies Series
Your Part Number
Technical Datasheet
16 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $32.150 |
| 5+ | $27.080 |
| 10+ | $23.380 |
Price for:Each
Minimum: 1
Multiple: 1
$32.15
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP005987
Newark Part No.12AJ7212
Product RangeMiniature Coaxial Cable Assemblies Series
Technical Datasheet
Cable Length - Imperial20"
Connector to Connector90° U.FL Plug to N-Type Bulkhead Jack
Cable Length - Metric200mm
Coaxial Cable Type-
Connector Type AU.FL Right Angle Plug
Connector Type BN Type Bulkhead Jack
Impedance-
Jacket Color-
Product RangeMiniature Coaxial Cable Assemblies Series
SVHCNo SVHC (27-Jun-2024)
Product Overview
The MP005987 is a 200mm RF/Coaxial Cable Assembly with U.FL socket to Rear Lock N type plug with the added advantage of rear lock bulkhead connector for security. It features a 1.37mm low-loss cable. Ideal for outdoor RF communications applications. Utilizing 1.37mm low-loss cable. Ideal for outdoor RF communications applications
- 1.37mm low-loss micro coaxial cable
- Impedance: 50 Ω
- Frequency range: DC to 3 GHz
- Working voltage: 60Vrms max.
- Dielectric withstanding voltage: 200Vrms max.
- Insulator resistance: 500MΩ min.
- VSWR: 1.4 : 1 max.
- Insertion loss: -1.3dB max.
- Sheath colour black
- Temperature range-20-+70 degC
Technical Specifications
Cable Length - Imperial
20"
Cable Length - Metric
200mm
Connector Type A
U.FL Right Angle Plug
Impedance
-
Product Range
Miniature Coaxial Cable Assemblies Series
Connector to Connector
90° U.FL Plug to N-Type Bulkhead Jack
Coaxial Cable Type
-
Connector Type B
N Type Bulkhead Jack
Jacket Color
-
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
