MP710067 US

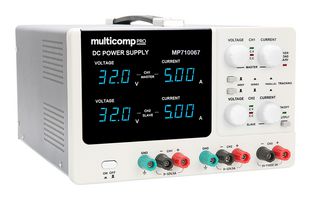

Bench Power Supply, Adjustable, Fixed, 3 Output, 0 V, 32 V, 0 A, 5 A
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP710067 US
Newark Part No.73AH0058
Technical Datasheet
Power Supply Output TypeAdjustable, Fixed
No. of Outputs3 Output
Output Voltage Min0V
Output Voltage Max32V
Output Current Min0A
Output Current Max5A
Power Rating335W
Supply Voltage Min-
Supply Voltage Max230VAC
Manufacturer Warranty3 Years
Product Range-
Plug TypeUS
SVHCNo SVHC (25-Jun-2025)
Product Overview
- 3 channels, 0V to 32V, 5A bench top DC power supply
- Low ripple/noise
- Auto conversion of constant voltage/current with current limit protection
- Input voltage of 115VAC/230VAC, frequency of 47Hz to 63Hz
- Parallel/series connection
- Output on/off control
- 335W output power
- 3bit voltage and current dual display
- Dimensions 260mm × 170mm × 315mm, weight is 10Kg
- 12 Months Standard Warranty
Contents
Bench top DC power supply, US power cord, Test leads.
Technical Specifications
Power Supply Output Type
Adjustable, Fixed
Output Voltage Min
0V
Output Current Min
0A
Power Rating
335W
Supply Voltage Max
230VAC
Product Range
-
SVHC
No SVHC (25-Jun-2025)
No. of Outputs
3 Output
Output Voltage Max
32V
Output Current Max
5A
Supply Voltage Min
-
Manufacturer Warranty
3 Years
Plug Type
US
