MP710260 US

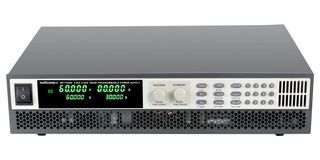

Bench Power Supply, Adjustable, 1 Output, 0 VDC, 60 VDC, 0 A, 60 A
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 13 week(s)
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP710260 US
Newark Part No.42AH0485
Technical Datasheet
Power Supply Output TypeAdjustable
No. of Outputs1 Output
Output Voltage Min0VDC
Output Voltage Max60VDC
Output Current Min0A
Output Current Max60A
Power Rating1.8kW
Supply Voltage Min-
Supply Voltage Max120VAC
Manufacturer Warranty3 Years
Product Range-
Plug TypeUS
SVHCNo SVHC (25-Jun-2025)
Product Overview
MP710260 is a 1,800W bench top DC power supply can be used for a wide range of voltage and current applications. Featuring a built-in programmable sequence output function, which can output dynamic voltage and current. The product is equipped with a built-in USB/RS232/GPIB/LAN communication interface and also provides an Analogue control interface and switching control interface.
- Setting up the voltage and current rise slope
- Various modes(source CV/CC/CP, load CC/CP), independent edge setting, adjustable rise and fall times
- List sequence programming output
- Low chopping and low noise
- High resolution and precision
- Remote measurement function
- Analogue control interfaces
- Panel LOCK function
- Over voltage and over current protection
- Built-in USB/RS232/GPIB/LAN communication interfaces
Contents
DC power supply, User manual, Power cord (US).
Technical Specifications
Power Supply Output Type
Adjustable
Output Voltage Min
0VDC
Output Current Min
0A
Power Rating
1.8kW
Supply Voltage Max
120VAC
Product Range
-
SVHC
No SVHC (25-Jun-2025)
No. of Outputs
1 Output
Output Voltage Max
60VDC
Output Current Max
60A
Supply Voltage Min
-
Manufacturer Warranty
3 Years
Plug Type
US
