R-P31G7210100CA
RF / Coaxial Cable Assembly, FME Bulkhead Plug to 90° U.FL Plug, 1.37mm, 50 ohm, 3.9 ", 100 mm

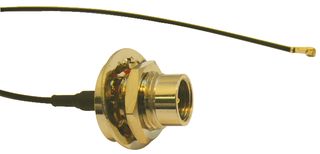

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoR-P31G7210100CA
Newark Part No.04R7698
Product RangeMiniature Coaxial Cable Assemblies Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 19 week(s)
| Quantity | Price |
|---|---|
| 1+ | $22.270 |
| 10+ | $20.760 |
| 25+ | $19.690 |
Price for:Each
Minimum: 1
Multiple: 1
$22.27
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoR-P31G7210100CA
Newark Part No.04R7698
Product RangeMiniature Coaxial Cable Assemblies Series
Technical Datasheet
Connector to ConnectorFME Bulkhead Plug to 90° U.FL Plug
Connector Type AU.FL Right Angle Plug
Connector Type BFME Bulkhead Plug
Coaxial Cable Type1.37mm
Impedance50ohm
Cable Length - Imperial3.9"
Cable Length - Metric100mm
Jacket ColorBlack
Product RangeMiniature Coaxial Cable Assemblies Series
SVHCNo SVHC (27-Jun-2024)
Product Overview
The R-P31G7210100CA is a 100mm RF Coaxial Cable Assembly with right angle U.FL plug to FME plug. It features black heat shrink tube, U.FL-LP-088 shell and terminal contact. Utilizing 1.37mm low-loss cable. Ideal for outdoor RF communications applications
- 1.37mm low-loss micro coaxial cable
- Impedance: 50 Ω
- Frequency range: DC to 3 GHz
- Working voltage: 500Vrms max.
- Dielectric withstanding voltage: 1,500Vrms max.
- Insulator resistance: 500MΩ min.
- VSWR: 1.4 : 1 max.
- Insertion loss: -1.3dB max.
- Sheath colour black
- Temperature range-20-+70 degC
Applications
RF Communications
Technical Specifications
Connector to Connector
FME Bulkhead Plug to 90° U.FL Plug
Connector Type B
FME Bulkhead Plug
Impedance
50ohm
Cable Length - Metric
100mm
Product Range
Miniature Coaxial Cable Assemblies Series
Connector Type A
U.FL Right Angle Plug
Coaxial Cable Type
1.37mm
Cable Length - Imperial
3.9"
Jacket Color
Black
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
