SIP-06T
DIP / SIP Switch, Flush Slide, 6 Circuits, Slide, Through Hole, SPST, 50 V, 10 mA

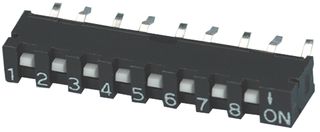

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoSIP-06T
Newark Part No.97K9766
Product RangeSIP
Technical Datasheet
6,171 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.380 |
| 25+ | $2.940 |
| 50+ | $2.620 |
| 100+ | $2.440 |
Price for:Each
Minimum: 1
Multiple: 1
$3.38
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoSIP-06T
Newark Part No.97K9766
Product RangeSIP
Technical Datasheet
No. of Circuits6Circuits
Switch Actuator StyleSlide
Switch MountingThrough Hole
Contact ConfigurationSPST
Contact Voltage DC Max50V
Pitch Spacing2.54mm
Contact Current DC Max10mA
Product RangeSIP
Switch TypeSIP
SVHCNo SVHC (21-Jan-2025)
Product Overview
The SIP-06T is a single-pole single-throw (SPST) 6-way SIL Switch with solder terminal. The SIP series switch has gold plating over nickel contact, white nylon thermoplastic actuator and black nylon high temperature thermoplastic cover/base. Splay terminals allow for automatic insertion by IC insertion machine. It supports insert moulding of terminals and ultrasonic welding. High density and thinner outline to reduces package space and high pressure contact structure to prevent vibration shock.
- 100mΩ Maximum initial contact resistance
- 100MΩ at 500VDC Insulation resistance
- 300VAC for one minute Minimum dielectric strength
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Technical Specifications
No. of Circuits
6Circuits
Switch Mounting
Through Hole
Contact Voltage DC Max
50V
Contact Current DC Max
10mA
Switch Type
SIP
Switch Actuator Style
Slide
Contact Configuration
SPST
Pitch Spacing
2.54mm
Product Range
SIP
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Alternatives for SIP-06T
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
